Stock Status:
Condition: New
SKU : 5422M76
8-port 4G LTE gateway designed to connect multiple mobile lines with VoIP and IP-PBX systems.
Provides 8 LTE channels, allowing multiple cellular communication lines to operate through one gateway.
Supports GSM, WCDMA and 4G LTE connectivity.
Supports SIP and IAX2 protocols for integration with compatible IP-PBX and VoIP systems.
Supports VoLTE where supported by the carrier and installed LTE module.
Enables two-way communication between mobile networks and VoIP systems.
Supports SMS sending and receiving, bulk SMS and USSD functionality.
Supports Least Cost Routing (LCR), Call Back, AutoCLIP and flexible incoming and outgoing call routing.
Includes ITU-T G.168 echo cancellation for improved voice communication.
Provides two 10/100 Mbps Ethernet interfaces for network and VoIP connectivity.
Supports VLAN, firewall, OpenVPN, QoS, DDNS and static routing.
Provides web-based configuration and management.
Supports external antenna installation where required.
Designed for business communication, cellular trunking, VoIP backup and high-volume mobile calling.

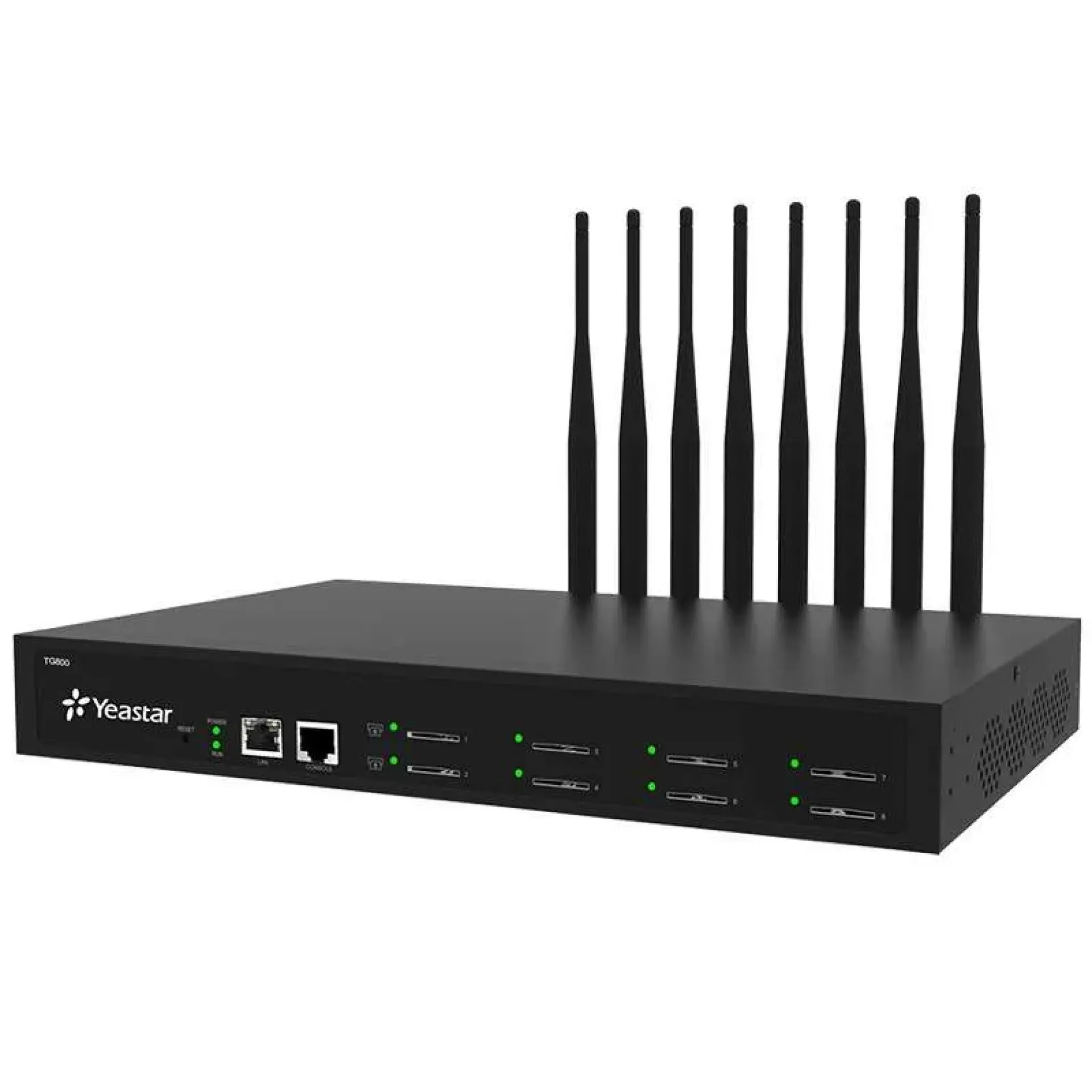

The Yeastar TG800L 4G LTE 8 Ports VoIP GSM Gateway is a multi-channel telecommunications gateway designed to bridge 4G LTE, GSM and 3G mobile networks with VoIP and IP-PBX systems. With eight LTE channels, it allows organizations to integrate multiple cellular lines into their existing IP-based communication infrastructure.
The gateway supports SIP and IAX2, flexible call routing, VoLTE where supported, SMS, USSD, bulk messaging and Least Cost Routing. This makes it suitable for businesses that require several mobile communication channels, cellular failover or additional mobile trunks for an IP-PBX.
| Product | Price in Kenya |
|---|---|
| Yeastar TG800L 4G LTE 8 Ports VoIP GSM Gateway | KSh 95,000 – KSh 100,000 |
The supplied listing price of KSh 95,000 is also reflected by a current Kenya-based product listing.
| Specification | Details |
|---|---|
| Brand | Yeastar |
| Model | TG800L |
| Product Type | 8-Port 4G LTE VoIP GSM Gateway |
| LTE Channels | 8 |
| Cellular Networks | 4G LTE, GSM and WCDMA |
| GSM Frequencies | 850, 900, 1800, 1900 MHz |
| LTE Bands | Dependent on installed LTE module |
| WCDMA Frequencies | 850/1900, 850/2100, 900/2100 MHz |
| VoLTE | Supported where carrier and module support it |
| VoIP Protocols | SIP RFC3261, IAX2 |
| Transport Protocols | UDP, TCP, TLS, SRTP |
| Voice Codecs | G.711 A-law/U-law, G.722, G.726, G.729A, GSM, ADPCM, Speex |
| Echo Cancellation | ITU-T G.168 LEC |
| DTMF | RFC2833, SIP INFO, In-band |
| Ethernet | 2 × 10/100 Mbps |
| SMS | Sending and receiving |
| Bulk SMS | Supported |
| USSD | Supported |
| Call Routing | Incoming and outgoing routing |
| Least Cost Routing | Supported |
| Call Back | Supported |
| AutoCLIP | Supported |
| Network Features | VLAN, Firewall, OpenVPN, QoS/ToS, DDNS, Static Route |
| NAT Traversal | Static NAT, STUN |
| Management | Web-based configuration |
| Antenna | External antenna support |
| Power Supply | AC 100–240V, 50/60Hz |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 65°C |
| Humidity | 10%–90% non-condensing |
| Dimensions | Approx. 340 × 210 × 44 mm |
The LTE frequency range varies according to the cellular module fitted to the gateway. Yeastar documentation identifies EC21-E and EC25-E module configurations with different LTE-band coverage.
Eight LTE channels provide considerably more cellular capacity than lower-port TG-series gateways.
Supports simultaneous integration of multiple mobile lines with a compatible IP-PBX.
Provides mobile-to-VoIP and VoIP-to-mobile communication.
VoLTE support can provide clearer voice communication where supported by the carrier and hardware.
G.168 echo cancellation helps improve call quality.
Multiple codecs provide compatibility with different VoIP environments.
Least Cost Routing can help organizations select preferred routes for outgoing calls.
Call Back and flexible routing features provide additional control over mobile communication.
SMS, bulk SMS and USSD extend the gateway beyond conventional voice calling.
Two Ethernet interfaces provide additional flexibility for network deployment.
Professional rack-style gateway enclosure suitable for business communication installations.
Approximate dimensions of 340 × 210 × 44 mm.
AC 100–240V power input supports standard electrical installations.
External antenna support can help accommodate deployment requirements where antenna positioning is necessary.
Designed for installation alongside IP-PBX, VoIP servers, softswitches and other telecommunications equipment.
Operating temperature of 0°C to 40°C is appropriate for typical indoor business and communications environments.
Compatible with SIP and IAX2 based VoIP systems.
Can connect mobile networks with IP-PBX platforms and compatible softswitches.
Supports two 10/100 Mbps Ethernet interfaces.
Supports UDP, TCP, TLS and SRTP transport protocols.
Provides VLAN, firewall, OpenVPN, QoS, DDNS and static-route capabilities.
Supports Static NAT and STUN for NAT traversal.
Compatible with Yeastar and other compatible IP-PBX environments, subject to system configuration.
Can be used for cellular trunking, VoIP failover and mobile-network integration.
Medium and large businesses requiring multiple cellular communication channels.
Call centres handling substantial mobile call traffic.
IP-PBX deployments requiring multiple GSM or LTE trunks.
Branch offices that need cellular connectivity integrated with a central VoIP system.
VoIP backup installations where mobile networks provide an alternative communication path.
Bulk SMS applications for customer alerts, notifications and business messaging.
Telecommunications environments requiring multiple mobile channels.
Remote offices where cellular connectivity is more practical than fixed-line services.
Businesses seeking Least Cost Routing for mobile and VoIP calls.
Organizations managing multiple SIM-based communication lines from a centralized system.
How many LTE channels does the Yeastar TG800L have?
The TG800L provides 8 LTE channels, allowing multiple cellular lines to be connected to a VoIP infrastructure.
Does the Yeastar TG800L support VoLTE?
Yes. The gateway supports VoLTE where the installed LTE module and mobile carrier provide the required support.
Does the TG800L support SMS?
Yes. It supports SMS sending and receiving as well as bulk SMS functionality. USSD is also supported.
Can the TG800L connect to an IP-PBX?
Yes. It supports SIP and IAX2, making it suitable for integration with compatible IP-PBX systems and VoIP platforms.
How many Ethernet ports does the TG800L have?
The TG800L provides two 10/100 Mbps Ethernet ports.
Does the TG800L support Least Cost Routing?
Yes. Least Cost Routing is available for selecting preferred routes for outgoing calls.
What mobile networks does the TG800L support?
It supports GSM, WCDMA and 4G LTE. Exact LTE bands depend on the cellular module installed in the gateway.
Is the TG800L suitable for a call centre?
Yes. Its eight cellular channels make it suitable for call centres and businesses requiring higher mobile communication capacity.
| Pros | Cons |
|---|---|
| Eight 4G LTE channels | Requires compatible SIM cards and mobile services |
| Supports SIP and IAX2 | LTE-band support depends on the installed module |
| Supports VoLTE where available | Advanced configuration may require VoIP knowledge |
| SMS, bulk SMS and USSD support | Not intended to function as a conventional standalone telephone |
| Supports Least Cost Routing | Cellular performance depends on carrier coverage |
| Two Ethernet interfaces | Ethernet ports are limited to 10/100 Mbps |
| Flexible incoming and outgoing routing | Requires proper network and PBX configuration |
| Firewall, VLAN, OpenVPN and QoS features | Higher cost than lower-capacity gateways |
The Yeastar TG800L 4G LTE 8 Ports VoIP GSM Gateway is a high-capacity solution for organizations that need to integrate several mobile communication lines with VoIP and IP-PBX infrastructure. Its eight LTE channels, SIP and IAX2 support, VoLTE capability, SMS and USSD functions, flexible call routing and network-management features make it well suited to businesses, call centres, branch networks and cellular backup deployments
