Description

Yeastar P570 P-Series IP PBX Overview

The Yeastar P570 P-Series IP PBX is a high-capacity business telephone system designed for organizations that require centralized IP telephony, unified communications and flexible connectivity to traditional telephone networks. It supports up to 300 users and 60 concurrent calls in its standard configuration, with expansion available to 500 users and 120 concurrent calls. Its modular architecture supports analog, PSTN, BRI, cellular and E1/T1/J1 interfaces, while Linkus, call-center functions and video conferencing extend the system beyond traditional PBX communication.

Yeastar P570 P-Series IP PBX Price in Kenya

Yeastar P570 P-Series IP PBX Specifications

Yeastar lists the P570 at 300/500 users, 60/120 concurrent calls, 16 FXS, 16 FXO/BRI, 6 cellular ports and 2 E1/T1/J1 ports.

Yeastar P570 P-Series IP PBX Performance

• Provides capacity for 300 users in its standard configuration.

• Supports expansion to 500 users for growing organizations.

• Handles up to 60 concurrent calls, with supported D30 DSP expansion increasing this to 120.

• Supports up to 200 VoIP trunks according to P-Series capacity specifications.

• Multi-level IVR helps route incoming calls to departments, extensions and services.

• Call queues help organize high volumes of customer and business calls.

• Call recording supports training, quality monitoring and record keeping.

• Call monitoring features support supervision of business communications.

• Linkus UC enables employees to access business communications through supported web, desktop and mobile clients.

• Integrated call-center functions provide queue panels, wallboards, call distribution and reporting.

• Browser-based video conferencing provides voice and video collaboration without requiring additional conferencing applications.

• Remote access capabilities support employees and administrators working away from the office.

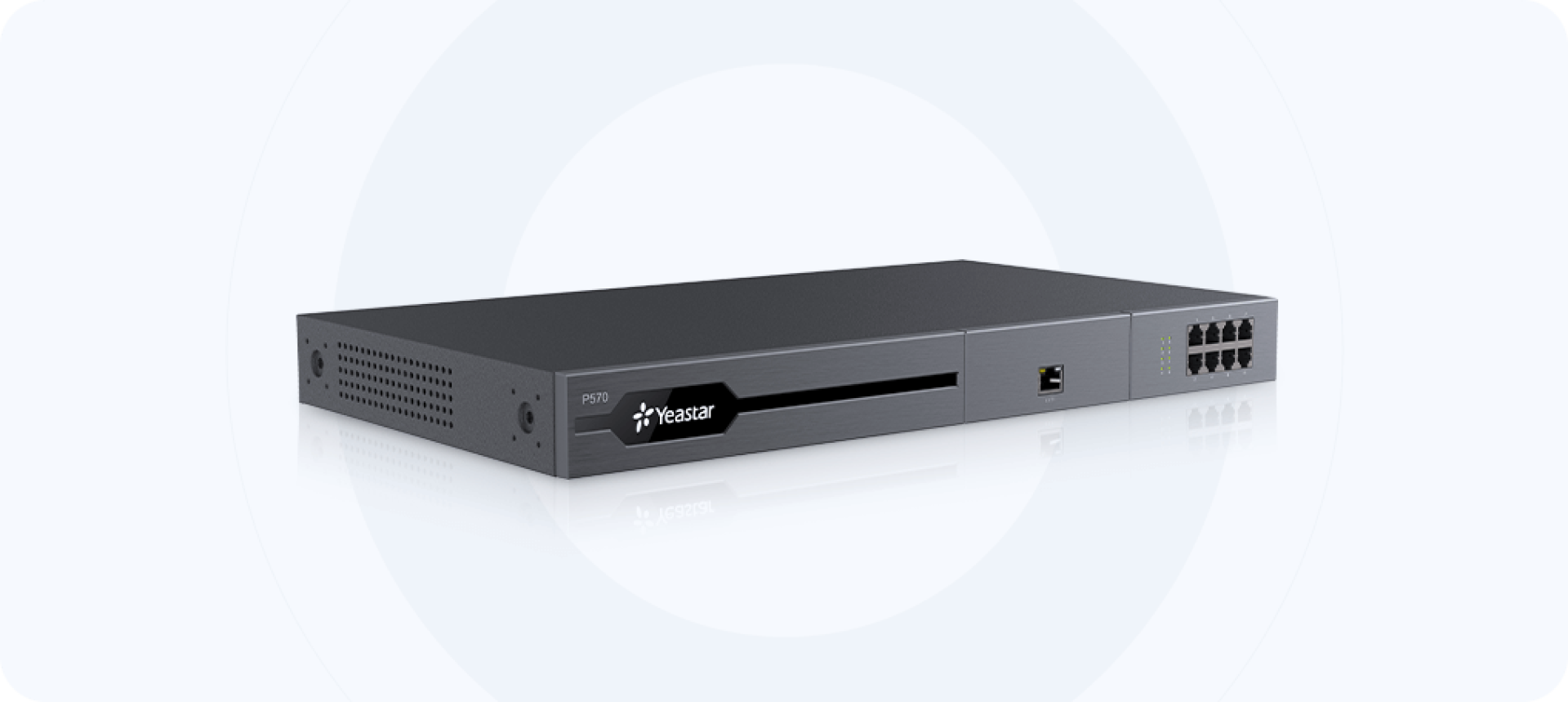

Yeastar P570 P-Series IP PBX Design and Build

• Uses a professional 1U rackmount form factor.

• Designed for server rooms, communications cabinets and structured network environments.

• Modular design allows physical telephony interfaces to be selected according to business requirements.

• Supports up to two expansion boards.

• Supports up to two D30 DSP modules for increasing user and concurrent-call capacity.

• Provides USB, SD-card and SATA storage options for applicable recording and system requirements.

• Dual Gigabit Ethernet connectivity provides high-speed network access.

• Suitable for centralized installation alongside switches, routers, gateways and other business networking equipment.

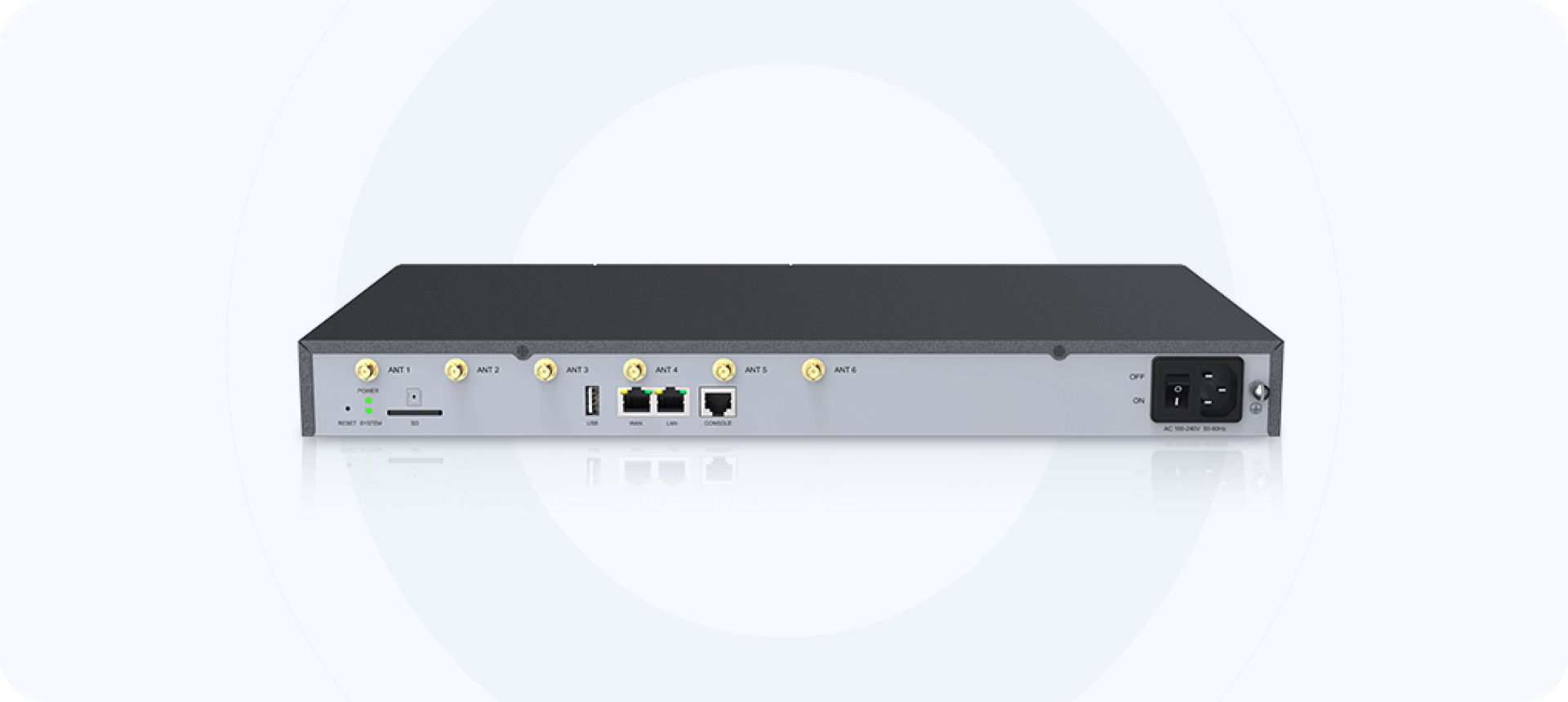

Yeastar P570 P-Series IP PBX Connectivity and Compatibility

• Supports SIP-compatible IP phones and other SIP endpoints.

• Supports SIP trunking for Internet-based business calls.

• FXS modules provide connectivity for compatible analog telephones.

• FXO modules support compatible PSTN lines.

• BRI modules support compatible ISDN BRI services.

• GSM, 3G and 4G modules provide cellular connectivity.

• Compatible expansion hardware supports up to two E1/T1/J1 interfaces.

• Supports secure SIP communication using TLS and SRTP.

• Provides two Gigabit Ethernet interfaces.

• Linkus UC supports communications through web, desktop and mobile platforms.

• Supports interoperability with various IP phones, gateways, headsets and SIP trunks.

• Supports integrations with CRM and other business applications.

Yeastar P570 P-Series IP PBX Ideal Use Cases

• Medium-sized and large businesses.

• Organizations with up to 300 users.

• Growing companies that may need expansion to 500 users.

• Call centers and customer-service departments.

• Hotels and hospitality businesses.

• Schools, colleges and universities.

• Hospitals and healthcare institutions.

• Government and large administrative offices.

• Multi-branch organizations requiring centralized communications.

• Businesses using SIP trunks together with traditional telephone services.

• Organizations requiring analog, PSTN, BRI or cellular connectivity.

• Businesses requiring E1/T1/J1 digital trunk connectivity.

• Companies requiring unified communications and remote working.

• Organizations requiring integrated video conferencing and CRM connectivity.

Yeastar P570 P-Series IP PBX FAQs

How many users does the Yeastar P570 support?

• The P570 supports up to 300 users as standard and can be expanded to 500 users.

How many concurrent calls can the P570 handle?

• It supports 60 concurrent calls as standard and up to 120 concurrent calls with D30 DSP expansion.

How many FXS ports does the P570 support?

• The P570 supports up to 16 FXS ports through compatible telephony modules.

Does the P570 support FXO and BRI?

• Yes. It supports up to 16 FXO or BRI ports through compatible modules.

Does the P570 support GSM and 4G?

• Yes. The P570 supports up to 6 GSM, 3G or 4G ports through compatible modules.

Does the P570 support E1 or T1?

• Yes. Compatible expansion hardware allows up to 2 E1/T1/J1 ports.

Can the P570 be expanded?

• Yes. It supports up to two D30 DSP modules, allowing the system to expand from 300 to 500 users and from 60 to 120 concurrent calls.

Does the P570 support Linkus?

• Yes. Linkus UC provides supported users with unified communications through web, desktop and mobile clients.

Is the P570 suitable for call centers?

• Yes. Yeastar provides call-center features including call distribution, queue management, operator panels, wallboards and reporting.

Does the P570 support video conferencing?

• Yes. The P-Series platform provides integrated web-based video conferencing with features such as screen sharing and team collaboration.

Yeastar P570 P-Series IP PBX Pros and Cons

Yeastar P570 P-Series IP PBX Conclusion

The Yeastar P570 P-Series IP PBX is a powerful and expandable communication platform for medium-sized and large organizations requiring substantial telephone capacity. With support for 300 users, expansion to 500 users, 60 standard concurrent calls and up to 120 concurrent calls with D30 DSP modules, it provides room for significant business growth. Its modular support for FXS, FXO, BRI, GSM, 3G, 4G and E1/T1/J1 connectivity, together with Linkus UC, call-center tools, video conferencing and business integrations, makes it suitable for demanding professional communication environments.
