Yeastar P560 P-Series IP PBX Overview

The Yeastar P560 P-Series IP PBX is a scalable business telephone system designed for medium-sized businesses and organizations that require more capacity than smaller P-Series models. It supports 100 users and 30 concurrent calls in its standard configuration, with expansion available to 200 users and 60 concurrent calls using a D30 DSP module. Its modular architecture also supports analog, PSTN, ISDN BRI, cellular and E1/T1/J1 connectivity, allowing businesses to adapt the PBX to different telephony infrastructures.

Yeastar P560 P-Series IP PBX Price in Kenya

Yeastar P560 P-Series IP PBX Specifications

The P560's published capacity, modular interfaces and expansion capabilities are confirmed by Yeastar and local Kenya distributor specifications.

Yeastar P560 P-Series IP PBX Performance

• Provides 100-user capacity for standard deployments.

• Expansion with the D30 module increases capacity to 200 users and 60 concurrent calls.

• Supports up to 200 VoIP trunks, providing flexibility for organizations using multiple SIP trunk services.

• Supports automated attendants and multi-level IVR for directing incoming callers.

• Call queues help organize incoming calls for sales, customer service and support departments.

• Call recording can support quality monitoring, training and record keeping.

• Supports remote and mobile extensions through the Linkus unified communications platform.

• Integrated call-center tools can provide features such as operator panels and wallboards.

• Video conferencing allows businesses to combine voice and video communication within the P-Series ecosystem.

• Supports CRM and other business integrations for connecting communication workflows with existing business applications.

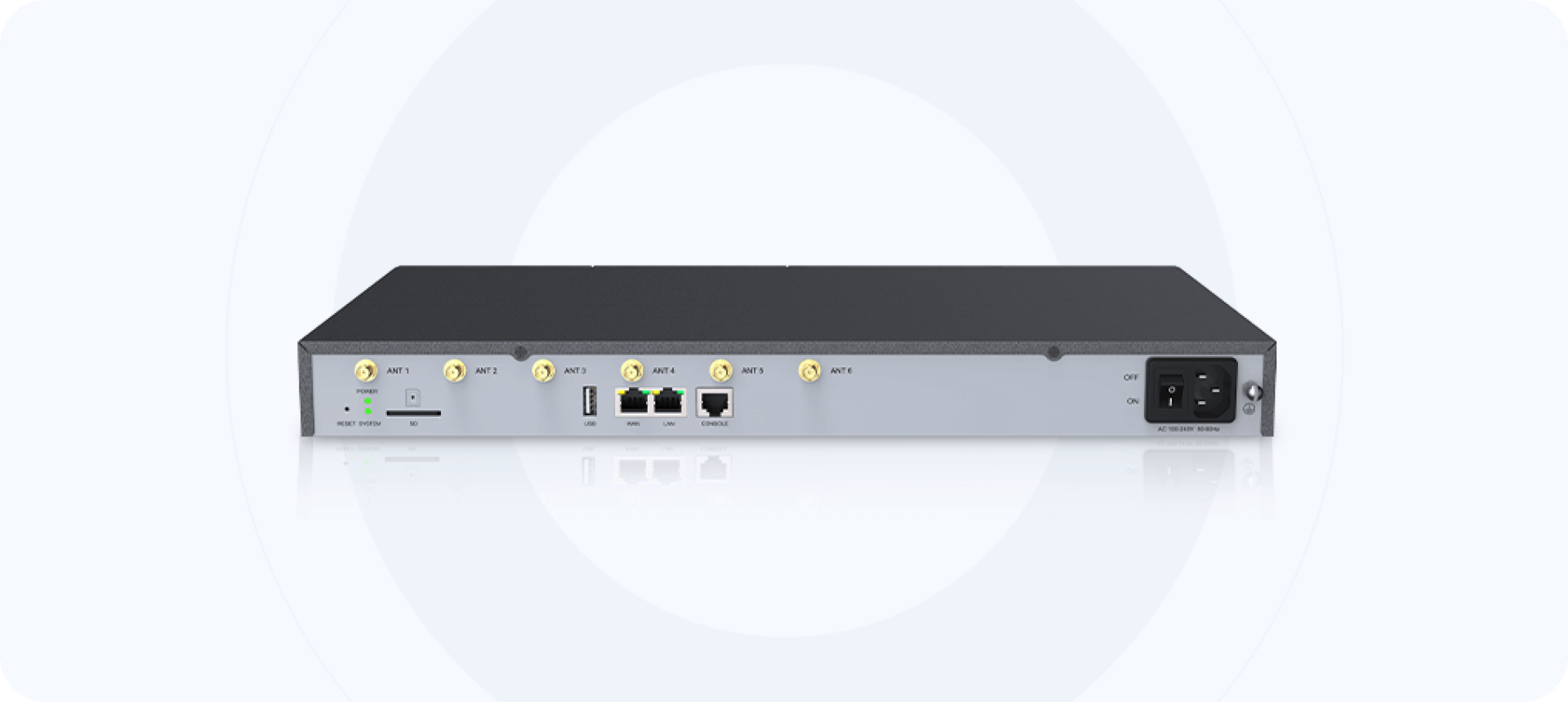

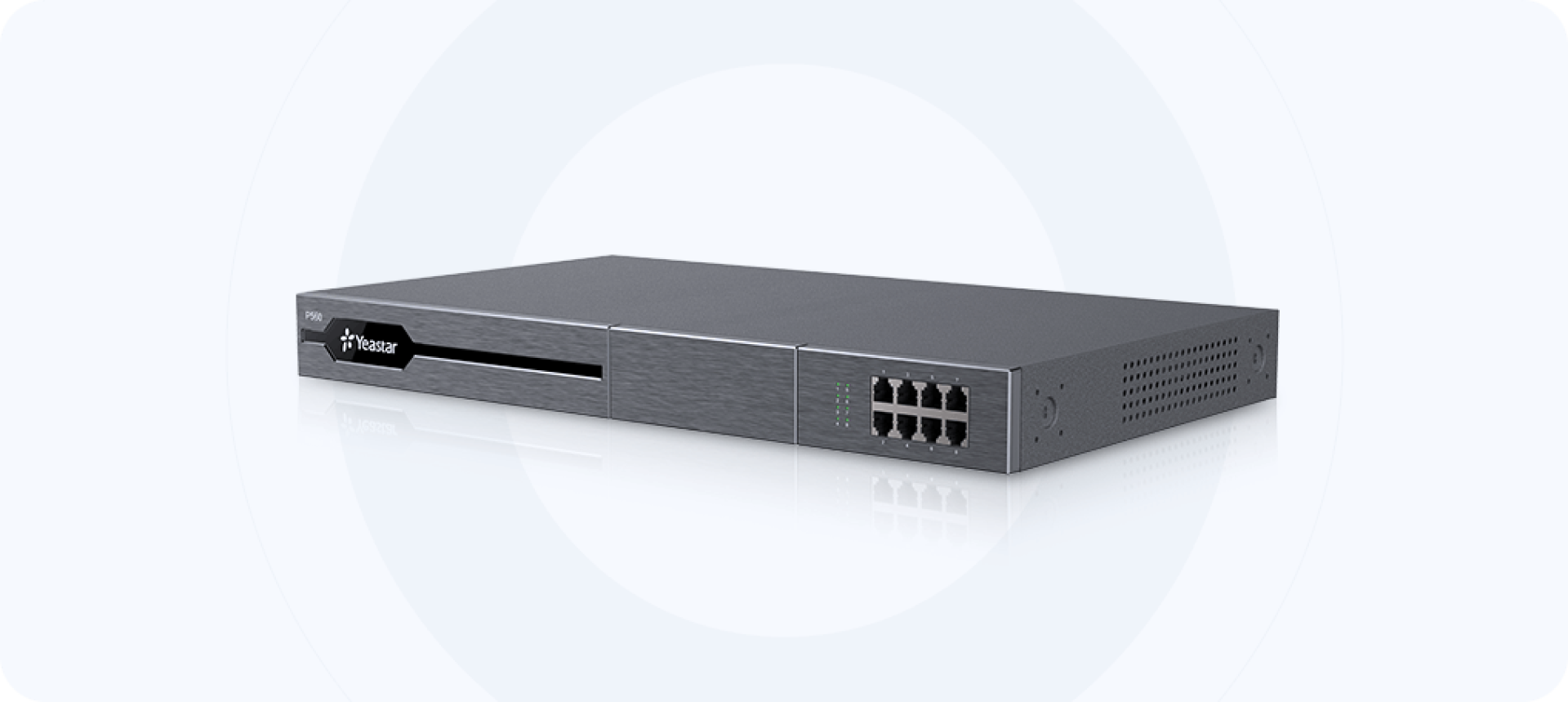

Yeastar P560 P-Series IP PBX Design and Build

• Uses a professional 1U rackmount form factor.

• Designed for installation in server rooms, network cabinets and structured communications environments.

• Modular construction allows physical telephone interfaces to be added according to business requirements.

• Supports one expansion board, with EX08 and EX30 options available for different connectivity requirements.

• Supports a D30 DSP module for increasing user and concurrent-call capacity.

• Storage expansion options include USB and SATA HDD connectivity on supported configurations.

Yeastar P560 P-Series IP PBX Connectivity and Compatibility

• Supports SIP-compatible IP phones and other SIP endpoints.

• Supports up to 200 VoIP trunks.

• FXS expansion provides connectivity for compatible analog telephones.

• FXO expansion provides connectivity to compatible PSTN lines.

• BRI modules support compatible ISDN BRI telephone services.

• GSM, 3G and 4G modules allow cellular connectivity where required.

• An EX30 expansion board can provide one E1/T1/J1 digital trunk interface.

• Provides two Gigabit Ethernet interfaces for network connectivity.

• Supports TLS and SRTP for secure VoIP communication.

• Linkus UC enables supported users to access business communications from desktop, mobile and web environments.

• Supports integration with CRM, call-center and other business applications.

Yeastar P560 P-Series IP PBX Ideal Use Cases

• Medium-sized businesses with up to 100 users.

• Growing organizations requiring expansion to 200 users.

• Offices with high simultaneous-call requirements.

• Companies using multiple SIP trunks.

• Businesses combining IP phones with analog telephone systems.

• Organizations requiring PSTN or ISDN BRI connectivity.

• Businesses requiring GSM, 3G or 4G telephone connectivity.

• Organizations requiring E1/T1/J1 digital trunk support.

• Call centers and customer-service departments.

• Hotels and hospitality businesses.

• Schools, universities and other institutions.

• Hospitals and healthcare organizations.

• Multi-site businesses requiring remote extensions.

• Businesses requiring unified communications and video conferencing.

Yeastar P560 P-Series IP PBX FAQs

How many users does the Yeastar P560 support?

• The P560 supports 100 users as standard and can be expanded to 200 users with a D30 DSP module.

How many concurrent calls can the P560 handle?

• It supports 30 concurrent calls in its standard configuration and up to 60 concurrent calls after D30 expansion.

How many VoIP trunks does the P560 support?

• The P560 supports up to 200 VoIP trunks.

Does the P560 support analog phones?

• Yes. Compatible FXS modules can provide up to 8 analog extension ports.

Does the P560 support PSTN lines?

• Yes. Compatible FXO modules can provide up to 8 FXO ports.

Does the P560 support BRI?

• Yes. It can support up to 8 BRI ports through compatible expansion modules.

Does the P560 support GSM and 4G?

• Yes. The P560 can support up to 4 GSM, 3G or 4G channels using compatible modules.

Does the Yeastar P560 support E1?

• Yes. The P560 supports one E1/T1/J1 port through compatible expansion hardware.

Can the P560 be expanded?

• Yes. A D30 DSP module can increase capacity from 100 to 200 users and from 30 to 60 concurrent calls. The P560 also supports one expansion board for additional physical telephony interfaces.

Does the P560 support Linkus?

• Yes. Linkus UC provides unified communications through supported web, desktop and mobile platforms.

Yeastar P560 P-Series IP PBX Pros and Cons

Yeastar P560 P-Series IP PBX Conclusion

The Yeastar P560 P-Series IP PBX is a scalable business communication platform designed for organizations that need substantial extension capacity and flexible telephony connectivity. With 100 standard users, 30 concurrent calls and expansion to 200 users and 60 concurrent calls, it provides room for business growth. Its support for SIP, analog, PSTN, BRI, cellular and E1/T1/J1 connectivity, together with Linkus UC, call-center tools and video conferencing, makes it a strong option for medium-sized businesses and institutions requiring a comprehensive IP PBX solution.
