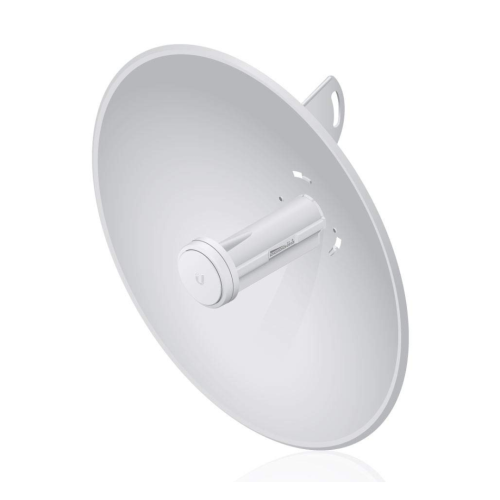

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Overview
The Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) is a high-performance outdoor wireless networking solution designed for long-distance Point-to-Point connectivity. It combines an integrated 25 dBi dish antenna with airMAX AC technology to provide focused, reliable and high-speed wireless links.
The directional dish concentrates the wireless signal toward the remote endpoint, helping improve link stability and reduce unwanted interference. With up to 450+ Mbps throughput and Gigabit Ethernet connectivity, the PowerBeam 5AC Gen2 is suitable for building-to-building connections, wireless backhaul, WISP networks, campus connectivity and remote-site networking.
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Price in Kenya
| Product |
Approximate Price |
| Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) |
KSh 22,000 – 28,000 |
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Key Specs
| Specification |
Details |
| Brand |
Ubiquiti |
| Model |
PBE-5AC-Gen2 |
| Wireless Technology |
airMAX AC |
| Frequency Band |
5 GHz |
| Operating Frequency |
5150 – 5875 MHz |
| Antenna Gain |
25 dBi |
| Wireless Throughput |
450+ Mbps |
| Antenna Type |
Integrated Dish Reflector |
| MIMO |
2×2 |
| Ethernet Interface |
1× 10/100/1000 Ethernet |
| Management Radio |
2.4 GHz Wi-Fi |
| Maximum TX Power |
24 dBm |
| Power Supply |
24V 0.5A Gigabit PoE Adapter |
| Power Method |
Passive PoE |
| Maximum Power Consumption |
8.5W |
| Dimensions |
420 × 420 × 230 mm |
| Weight |
2.2 kg |
| Wind Survivability |
200 km/h |
| Operating Temperature |
-40°C to 70°C |
| Operating Humidity |
5–95% non-condensing |
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Performance
- 25 dBi antenna gain provides strong directional wireless performance.
- Up to 450+ Mbps throughput supports high-bandwidth wireless bridge applications.
- airMAX AC technology improves spectrum efficiency.
- 2×2 MIMO provides efficient wireless data transmission.
- Directional dish architecture focuses RF energy toward the intended connection.
- Supports channel widths from 10 MHz to 80 MHz for PtP connections.
- Designed for long-distance wireless links with clear line of sight.
- Helps reduce interference from unwanted directions.
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Smart Features
- Dedicated 2.4 GHz management radio simplifies configuration.
- airMAX TDMA technology efficiently manages wireless traffic.
- Automatic distance adjustment helps optimize wireless performance.
- Signal-strength LED indicators assist with antenna alignment.
- Traffic shaping provides greater bandwidth management control.
- QoS features help prioritize network traffic.
- Built-in monitoring provides information about wireless performance.
- Spectral analysis helps identify interference and optimize channel selection.
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Design & Build
- Integrated dish reflector combines the antenna and radio into one unit.
- Compact 420 × 420 mm reflector is suitable for outdoor installations.
- Designed for mounting on poles and towers.
- Durable outdoor construction supports demanding environments.
- Wind survivability is rated up to 200 km/h.
- Four signal-strength LEDs simplify installation and alignment.
- Operates from -40°C to 70°C.
- Suitable for rooftops, towers, poles and other elevated installations.
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Connectivity
- 5 GHz wireless connectivity.
- 1× Gigabit Ethernet port.
- Passive PoE power and data connection.
- Dedicated 2.4 GHz management Wi-Fi.
- Point-to-Point wireless bridging.
- Point-to-Multipoint operation.
- Up to 80 MHz channel width in PtP mode.
- Compatible with Ubiquiti airMAX AC networks.
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Use Cases
- Building-to-Building Connectivity: Connect offices, warehouses and other buildings without running long Ethernet cables.
- Wireless Backhaul: Create reliable high-speed links between network locations.
- WISP Networks: Suitable for wireless Internet service provider infrastructure.
- Campus Networks: Extend connectivity across large properties.
- Remote Site Networking: Connect locations where fiber installation is difficult or expensive.
- IP Surveillance: Provide wireless connectivity for remote security-camera networks.
- Enterprise Networking: Establish dedicated wireless links between geographically separated sites.
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Pros & Cons
| Pros |
Cons |
| 25 dBi high-gain directional antenna |
Requires accurate alignment |
| Up to 450+ Mbps throughput |
Requires clear line of sight for best performance |
| 2×2 MIMO technology |
5 GHz can be affected by physical obstructions |
| Gigabit Ethernet connectivity |
Primarily designed for directional links |
| Dedicated management Wi-Fi |
Requires suitable outdoor mounting |
| Durable outdoor construction |
Passive PoE installation is required |
| Up to 200 km/h wind survivability |
— |
| Supports wide PtP channel bandwidths |
— |
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) FAQs
What is Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2)?
It is a 5 GHz outdoor wireless bridge featuring a 25 dBi directional dish antenna and airMAX AC technology for long-range wireless networking.
What is the throughput of Ubiquiti PowerBeam 5AC Gen2?
The PowerBeam 5AC Gen2 supports up to 450+ Mbps total throughput.
What antenna gain does Ubiquiti PowerBeam 5AC Gen2 have?
It features an integrated 25 dBi directional dish reflector.
Does Ubiquiti PowerBeam 5AC Gen2 have a Gigabit Ethernet port?
Yes. It includes one 10/100/1000 Gigabit Ethernet port.
Does Ubiquiti PowerBeam 5AC Gen2 support Point-to-Point connections?
Yes. It is primarily designed for long-range Point-to-Point wireless links and can also support Point-to-Multipoint applications.
How is Ubiquiti PowerBeam 5AC Gen2 powered?
It uses Passive PoE and comes with a 24V 0.5A Gigabit PoE adapter.
Is Ubiquiti PowerBeam 5AC Gen2 suitable for outdoor use?
Yes. It is designed for outdoor installations and can operate from -40°C to 70°C with wind survivability of up to 200 km/h.
Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Conclusion
The Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) is a powerful solution for long-range wireless networking. Its 25 dBi directional antenna, 2×2 MIMO, airMAX AC technology, 450+ Mbps throughput and Gigabit Ethernet connectivity make it ideal for building-to-building links, wireless backhaul, WISP infrastructure and remote-site connectivity. Its durable outdoor construction and dedicated management radio further simplify deployment and ongoing network management.
