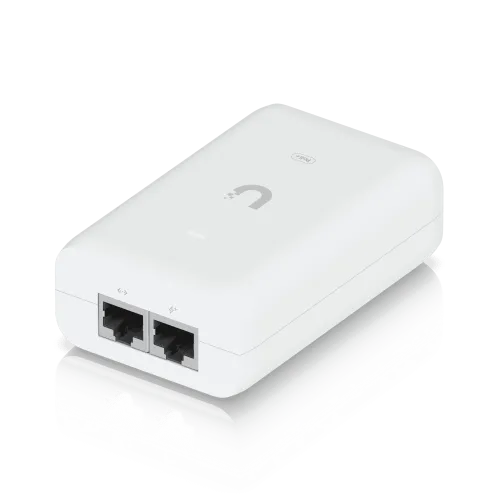

Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Overview
The Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) is a compact Gigabit PoE injector designed to provide reliable power to compatible UniFi PoE+ devices. It delivers up to 30W of power at 48V DC and allows both power and network data to travel through a single Ethernet cable.
The U-PoE+ is useful when a PoE switch is unavailable or when an individual access point, camera, VoIP phone, or other compatible network device needs dedicated PoE power. Its Gigabit Ethernet support allows high-speed data connectivity while supplying power to the connected equipment.
Built-in surge, clamping, and overcurrent protection adds an additional layer of electrical protection. Its compact form factor also makes it convenient for office, network cabinet, and other indoor installations.
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Price in Kenya
| Product |
Price in Kenya |
| Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) |
KSh 3,500 – KSh 4,500 |
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Key Specs
| Specification |
Details |
| Model |
U-PoE+ |
| Product Type |
PoE+ Adapter |
| PoE Standard |
IEEE 802.3at |
| Output Voltage |
48V DC |
| Output Current |
0.65A |
| Maximum Output Power |
30W |
| Ethernet Speed |
Gigabit Ethernet |
| Powering Method |
2-Pair |
| Input Voltage |
100–240V AC |
| Input Frequency |
50/60Hz |
| Input Current |
0.75A maximum |
| Efficiency |
87% |
| Surge Discharge |
1500A |
| Peak Pulse Current |
36A |
| Response Time |
<1ns |
| Dimensions |
93 × 62 × 35mm |
| Weight |
156g |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10–95% noncondensing |
| AC Connector |
IEC-320 C6 |
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Performance
- 30W Power Delivery: Provides up to 30W of PoE+ power for compatible network equipment.
- 48V Output: Delivers 48V DC at 0.65A for reliable operation of supported devices.
- Gigabit Data: Maintains up to Gigabit Ethernet data connectivity while delivering power.
- Efficient Operation: Provides approximately 87% power efficiency.
- Fast Protection: Protection circuitry responds in less than 1 nanosecond.
- Stable Power: Designed to provide consistent power for compatible PoE+ equipment.
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Smart Features
- Surge Protection: Helps protect connected equipment from electrical surges.
- Clamping Protection: Provides protection for both data and power circuits.
- Overcurrent Protection: Helps protect the adapter and connected equipment from excessive current.
- LED Indicator: Provides a convenient visual indication of adapter status.
- Shielded RJ45: Helps maintain a reliable Ethernet connection.
- Plug-and-Play Operation: No software configuration is required for basic PoE operation.
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Design & Build
- Compact 93 × 62 × 35mm enclosure.
- Lightweight 156g construction.
- Designed for indoor network installations.
- Compact form factor helps minimize installation clutter.
- Shielded RJ45 socket.
- Includes an AC power cable with earth ground.
- Suitable for desktop, wall, or network equipment installations.
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Connectivity
- Gigabit LAN Port: Provides high-speed Ethernet data input.
- PoE Output: Delivers both power and data through the Ethernet connection to compatible equipment.
- RJ45 Interface: Uses standard shielded Ethernet connectivity.
- 2-Pair Powering: Supplies PoE power through pins 4, 5 (+) and 7, 8 (-).
- AC Input: Supports 100–240V AC at 50/60Hz.
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Use Cases
- UniFi Access Points: Power compatible PoE+ wireless access points.
- IP Cameras: Provide dedicated PoE+ power to compatible surveillance cameras.
- VoIP Phones: Supply power and network connectivity to suitable PoE+ phones.
- Small Networks: Add PoE capability without installing a PoE switch.
- Office Networks: Power individual network devices from a standard AC outlet.
- Network Upgrades: Add PoE power to existing Ethernet infrastructure.
- Professional Installations: Provide dedicated power to compatible network equipment.
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Pros & Cons
| Pros |
Cons |
| 30W PoE+ output |
Powers one device at a time |
| 48V DC @ 0.65A |
Not designed for devices requiring more than 30W |
| Gigabit Ethernet support |
No remote reset capability |
| Surge and clamping protection |
Indoor operating temperature range |
| 87% efficiency |
Requires a separate Ethernet cable |
| Compact and lightweight |
Not a network switch |
| Wide 100–240V AC input |
Must verify device PoE compatibility |
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) FAQs
What is the output of the U-PoE+?
The U-PoE+ provides 48V DC at 0.65A, with a maximum PoE+ output of 30W.
Does the U-PoE+ support Gigabit Ethernet?
Yes. It includes a Gigabit Ethernet port for high-speed data connectivity.
Is the U-PoE+ compatible with PoE+ devices?
Yes. It is designed for compatible IEEE 802.3at PoE+ devices.
Does the U-PoE+ provide surge protection?
Yes. It includes surge and clamping protection, with a maximum power surge discharge rating of 1,500A.
Does the U-PoE+ support remote reset?
No. The Ubiquiti U-PoE+ does not provide remote reset capability or a reset button.
What devices can use the U-PoE+?
It can power compatible 802.3at PoE+ devices such as suitable UniFi access points, IP cameras, VoIP phones, and other network equipment requiring up to 30W.
Is the U-PoE+ the same as a PoE switch?
No. The U-PoE+ is a single-device PoE injector. It provides power and network passthrough for one connected device rather than switching multiple Ethernet connections.
Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) Conclusion
The Ubiquiti PoE+ Adapter 30W 48V DC @ 0.65A (U-PoE+) is a reliable solution for powering compatible 802.3at PoE+ network equipment without requiring a PoE switch. With 30W output, 48V DC power, Gigabit Ethernet support, 87% efficiency, and integrated surge and clamping protection, it is well suited to UniFi access points, IP cameras, VoIP phones, and other compatible devices.
Its compact 156g design and wide 100–240V AC input make the U-PoE+ easy to deploy in professional and small-network installations where dedicated PoE power is required.
