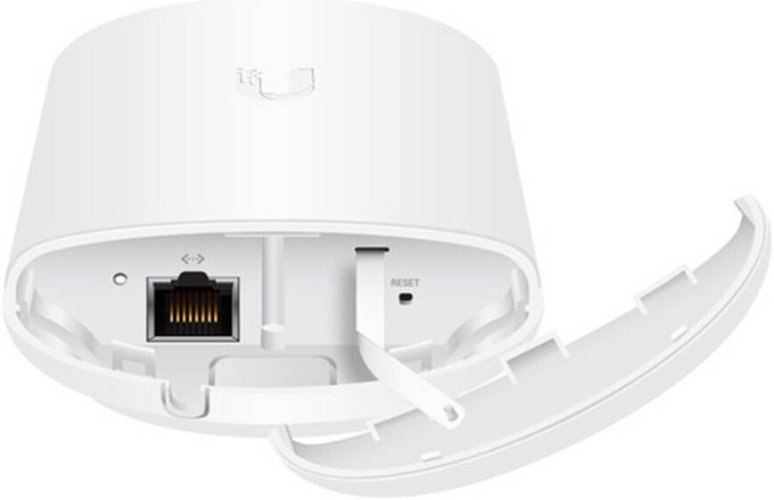

Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Overview
The Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready is a compact 5GHz airMAX AC wireless radio designed for customer-premises and outdoor networking applications. It combines a 13dBi integrated directional antenna with airMAX AC technology to provide efficient wireless connectivity for Point-to-Point and Point-to-Multipoint deployments.
With a Gigabit Ethernet port, dedicated management radio and support for up to 80 MHz channel bandwidth, the NanoStation 5AC Loco provides a practical solution for wireless Internet access, building-to-building connectivity and network extension. Its compact 180g enclosure makes it easy to mount on poles and other outdoor structures.
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Price in Kenya
Product
Approximate Price
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready
KSh 8,500 – 12,500
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Key Specs
Specification
Details
Brand
Ubiquiti
Model
Loco5AC
Product Type
5GHz airMAX AC Wireless Radio
Management
UISP-ready
Frequency Band
5GHz
Operating Frequency
5150–5875 MHz
Antenna Gain
13dBi
MIMO
2×2
Polarization
Dual Linear
Beamwidth
45° H / 45° V / 45° Elevation
Cross-Polarization Isolation
20dB minimum
Maximum VSWR
1.8:1
Channel Bandwidth
10/20/30/40/50/60/80 MHz
Ethernet Interface
1× Gigabit Ethernet
Management Radio
2.4GHz
Power Method
Passive PoE
Power Supply
24V 0.3A Gigabit PoE Supply
Maximum Power Consumption
7W
Dimensions
179 × 77.5 × 59.1 mm
Weight
180g
Mounting
Pole Mount
Operating Temperature
-40°C to 70°C
Operating Humidity
5–95% non-condensing
Enclosure
UV-stabilized polycarbonate
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Performance
Up to 450+ Mbps real TCP/IP throughput.
13dBi antenna gain provides focused 5GHz wireless connectivity.
2×2 MIMO improves wireless transmission efficiency.
airMAX AC technology helps optimize wireless network performance.
Supports channel bandwidths up to 80 MHz.
Directional antenna characteristics make it suitable for wireless links.
Designed for customer-premises and outdoor network deployments.
Suitable for high-performance Point-to-Point connectivity.
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Smart Features
Dedicated 2.4GHz management radio simplifies configuration.
airMAX AC mode improves wireless network efficiency.
Traffic shaping with burst support helps manage bandwidth.
Dynamic ACK assists with wireless link optimization.
QoS supports WMM packet classification and priority levels.
Ping watchdog helps monitor network connectivity.
SNMP, SSH and web-based management provide flexible administration.
Statistical reporting provides information about data rates, Ethernet link rate, packet errors and wireless distance.
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Design & Build
Compact 179 × 77.5 × 59.1 mm design.
Lightweight 180g construction simplifies installation.
UV-stabilized polycarbonate enclosure.
Pole-mounting kit included.
Integrated antenna and radio provide an efficient footprint.
Four signal-strength indicators assist with alignment.
Designed for temperatures from -40°C to 70°C.
Suitable for rooftops, poles and outdoor network installations.
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Connectivity
5GHz wireless connectivity.
1× Gigabit Ethernet port.
Passive PoE power connection.
2.4GHz dedicated management radio.
Supports airMAX AC wireless networking.
Supports Point-to-Point wireless links.
Supports Point-to-Multipoint deployments.
Supports channel bandwidths from 10 MHz to 80 MHz.
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Use Cases
WISP Networks: Use as customer-premises equipment in wireless Internet deployments.
Point-to-Point Links: Connect buildings and network locations wirelessly.
Building-to-Building Connectivity: Extend network access between offices, warehouses and other facilities.
Wireless Broadband: Deliver wireless Internet connectivity to remote customers.
Network Extension: Extend an existing network where wired cabling is difficult.
Remote Site Connectivity: Connect remote offices and facilities.
Outdoor Networking: Provide directional wireless connectivity across large properties.
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Pros & Cons
Pros
Cons
450+ Mbps real TCP/IP throughput
Requires suitable line of sight
13dBi integrated antenna
Requires accurate alignment
2×2 MIMO technology
Only one Ethernet port
Gigabit Ethernet
Passive PoE required
UISP-ready
5GHz can be affected by obstacles
Dedicated management Wi-Fi
Primarily designed for directional wireless applications
Compact and lightweight
—
Wide operating temperature range
—
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready FAQs
What is Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready?
It is a compact 5GHz airMAX AC wireless radio designed for outdoor customer-premises, Point-to-Point and Point-to-Multipoint networking.
What is the throughput of Ubiquiti NanoStation 5AC Loco?
The NanoStation 5AC Loco supports up to 450+ Mbps real TCP/IP throughput.
What antenna gain does the NanoStation 5AC Loco have?
It features an integrated 13dBi dual-linear polarized antenna.
Does Ubiquiti NanoStation 5AC Loco have a Gigabit Ethernet port?
Yes. It features one 10/100/1000 Gigabit Ethernet port.
Does NanoStation 5AC Loco support UISP?
Yes. The NanoStation 5AC Loco is UISP-ready, making it suitable for integration into supported Ubiquiti network management environments.
How is NanoStation 5AC Loco powered?
It uses Passive PoE and supports a 22–27V DC input range. The 24V 0.3A Gigabit PoE supply is sold separately.
Is Ubiquiti NanoStation 5AC Loco suitable for outdoor use?
Yes. It has a UV-stabilized polycarbonate enclosure and operates from -40°C to 70°C.
Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready Conclusion
The Ubiquiti NanoStation 5AC Loco (Loco5AC) UISP-ready is a compact and efficient 5GHz wireless solution for WISP, customer-premises, Point-to-Point and network-extension applications. Its 13dBi antenna, 2×2 MIMO, airMAX AC technology, 450+ Mbps throughput, Gigabit Ethernet and UISP-ready management make it a practical choice for reliable outdoor wireless connectivity in Kenya.
