Description
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Overview
The Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) is a lightweight and compact outdoor wireless networking solution designed for long-distance broadband connectivity. Its integrated 23dBi directional antenna focuses the wireless signal toward a specific location, making it suitable for wireless bridges and outdoor network links.
The LiteBeam M5 uses Ubiquiti airMAX technology to improve efficiency in outdoor wireless deployments. Its compact construction, low power consumption and adjustable mounting system make it a practical option for WISP installations, rural connectivity and connecting separate buildings.
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Price in Kenya
| Product |
Price in Kenya |
| Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) |
KSh 6,500 – 9,000 |
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Key Specs
| Specification |
Details |
| Model |
LBE-M5-23 |
| Frequency Band |
5GHz |
| Operating Frequency |
5150–5875 MHz |
| Antenna Gain |
23dBi |
| Wireless Technology |
airMAX |
| Antenna Type |
Directional |
| Ethernet |
1 × 10/100 MbE RJ45 |
| Maximum TX Power |
25dBm |
| Max. Power Consumption |
7W |
| Power Method |
Passive PoE |
| PoE Adapter |
24V 0.2A included |
| Supported Voltage |
22–27V DC |
| Dimensions |
362 × 267 × 184 mm |
| Weight |
750g |
| Mounting |
Pole Mount |
| Operating Temperature |
-40°C to 70°C |
| Operating Humidity |
5–95% noncondensing |
| Max. VSWR |
1.5:1 |
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Performance
- 23dBi High-Gain Antenna: Provides focused directional transmission for long-distance wireless links.
- 5GHz Connectivity: Offers a dedicated wireless band suitable for outdoor broadband and backhaul applications.
- airMAX Technology: Uses TDMA-based wireless communication to improve network efficiency in outdoor deployments.
- Long-Distance Bridging: Designed for Point-to-Point wireless links between buildings and network locations.
- Up to 100+ Mbps: Suitable for broadband distribution and network backhaul depending on environmental and configuration conditions.
- 25dBm Output Power: Provides strong transmission capability for outdoor wireless deployments.
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Smart Features
- airMAX TDMA protocol
- Point-to-Point wireless bridging
- Point-to-Multipoint functionality
- Directional antenna design
- Three-axis alignment system
- Adjustable wireless configuration
- Web-based device management
- Designed for WISP deployments
- Suitable for outdoor broadband distribution
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Design & Build
- Compact dimensions of 362 × 267 × 184 mm
- Lightweight 750g construction
- Integrated 23dBi directional antenna
- Pole mounting kit included

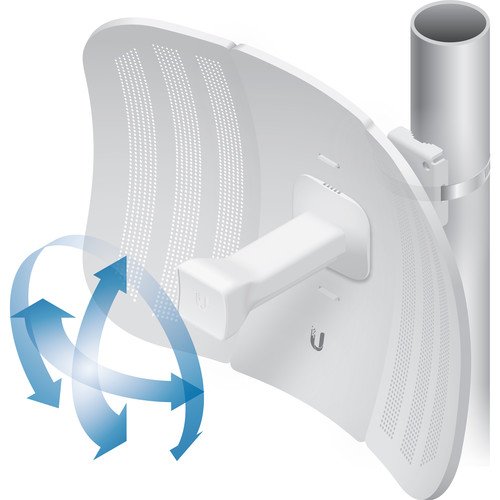

- Three-axis ball-joint mounting mechanism
- Outdoor-rated construction
- Designed for operation between -40°C and 70°C
- Wind survivability of up to 200 km/h
- Low-power 7W maximum consumption
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Connectivity
- 5GHz wireless connectivity
- 1 × 10/100 MbE RJ45 Ethernet port
- Passive PoE power
- 24V 0.2A PoE adapter
- 23dBi directional antenna
- 5150–5875 MHz worldwide operating range
- Suitable for Point-to-Point wireless connections
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Use Cases
- Building-to-Building Links: Connect offices, warehouses or buildings without running long Ethernet cables.
- WISP Networks: Suitable for Wireless Internet Service Provider customer installations.
- Rural Connectivity: Extend broadband access to locations where wired infrastructure is difficult to deploy.
- Wireless Backhaul: Create dedicated outdoor network links between locations.
- CCTV Networking: Connect remote surveillance installations to a central network.
- Point-to-Point Links: Establish focused long-distance connections between two network sites.
- Point-to-Multipoint Networks: Use the device as part of an outdoor wireless distribution network.
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Pros & Cons
| Pros |
Cons |
| High-gain 23dBi antenna |
Uses 10/100 Ethernet |
| Lightweight and compact |
Requires suitable line of sight |
| Designed for long-distance links |
5GHz can be affected by obstacles |
| Low power consumption |
Older airMAX M-series platform |
| Passive PoE adapter included |
Not designed for high-density Wi-Fi |
| Easy three-axis alignment |
Performance depends on installation conditions |
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) FAQs
What is Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23)?
It is an outdoor 5GHz wireless CPE designed for long-distance broadband connections, wireless bridging, WISP deployments and Point-to-Point networking.
What is the antenna gain of the Ubiquiti LiteBeam M5 23dBi?
The LBE-M5-23 features a 23dBi directional antenna designed for focused long-distance wireless communication.
Does the Ubiquiti LiteBeam M5 support Point-to-Point connections?
Yes. It is designed for Point-to-Point wireless bridging and can also be used in Point-to-Multipoint deployments.
What Ethernet port does the Ubiquiti LiteBeam M5 have?
It has one 10/100 MbE RJ45 Ethernet port.
Does the Ubiquiti LiteBeam M5 include a PoE adapter?
Yes. A 24V 0.2A Passive PoE adapter is included.
Is the Ubiquiti LiteBeam M5 suitable for outdoor installation?
Yes. It is designed for outdoor use and supports an operating temperature range of -40°C to 70°C.
How far can the Ubiquiti LiteBeam M5 connect?
The LBE-M5-23 is designed for long-distance wireless links, with achievable distance depending on line of sight, antenna alignment, interference, terrain, channel configuration and regulatory conditions.
Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) Conclusion
The Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE (LBE-M5-23) is a cost-effective solution for long-distance outdoor wireless connectivity. Its 23dBi directional antenna, airMAX technology, compact 750g design and low power consumption make it suitable for wireless bridges, WISP networks, rural broadband and building-to-building connections. For customers looking for an affordable 5GHz outdoor CPE for reliable long-range wireless networking, the LiteBeam M5 remains a practical choice.
