Description

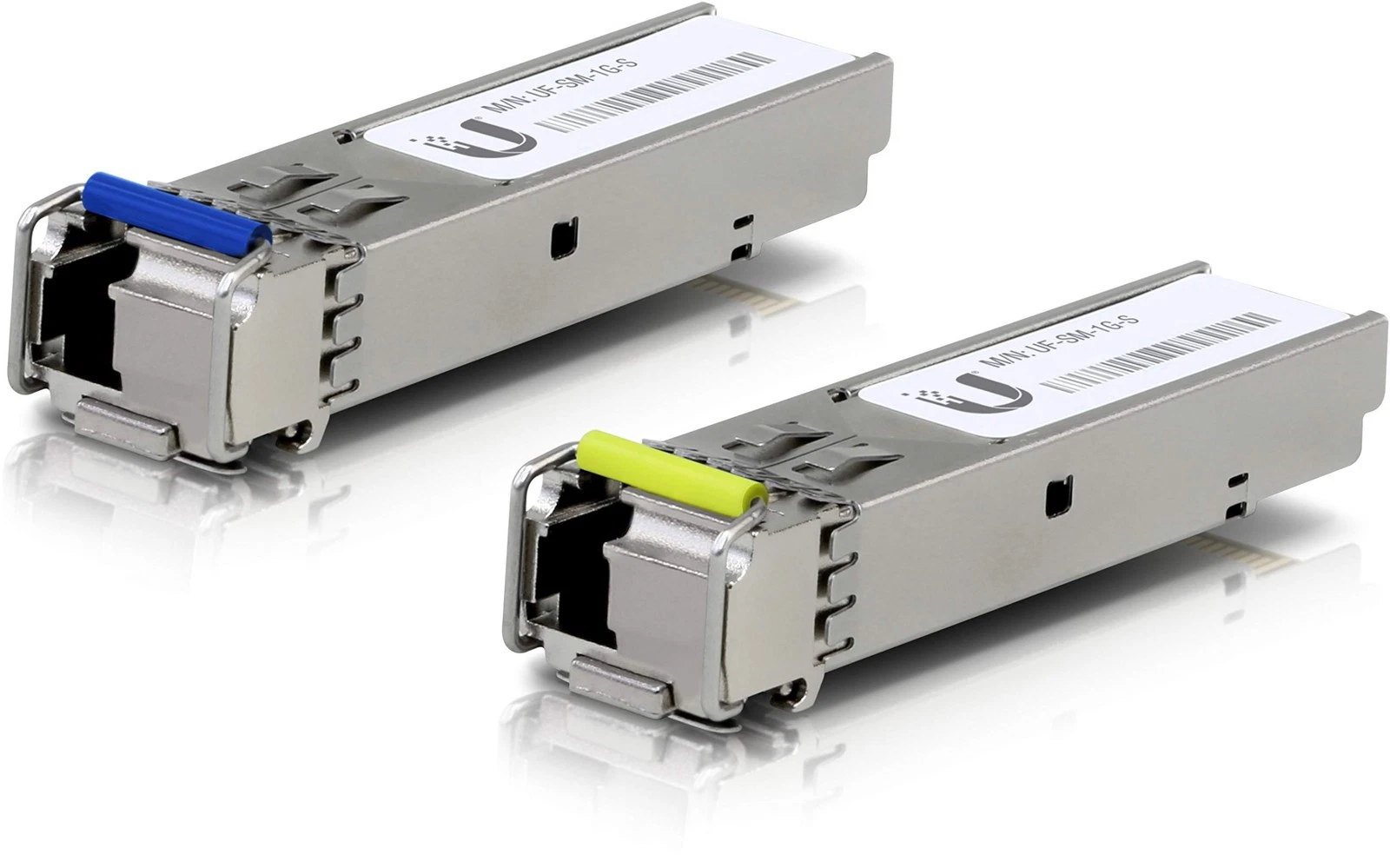

Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Overview
The Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) is a pair of SFP optical transceivers designed for Gigabit fiber networking over distances of up to 3 kilometers. Unlike conventional duplex fiber modules that require two fiber strands, BiDi technology allows data to travel in both directions over a single strand of single-mode fiber.
The two modules use complementary transmit and receive wavelengths. One module transmits at 1310nm and receives at 1550nm, while the other transmits at 1550nm and receives at 1310nm. This makes the pair suitable for establishing a bidirectional fiber link between compatible switches, gateways and other networking equipment.
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Price in Kenya
| Product |
Estimated Price in Kenya |
| Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) |
KSh 5,500 – 8,000 |
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Key Specs
| Specification |
Details |
| Model |
UACC-OM-SM-1G-S-2 |
| Form Factor |
SFP |
| Fiber Type |
Single-Mode Fiber |
| Technology |
BiDi |
| Data Rate |
1 Gbps |
| Line Rate |
Up to 1.25 Gbps |
| Connector |
Simplex LC UPC |
| Transmission Distance |
Up to 3 km |
| TX Wavelength |
1310 / 1550 nm |
| RX Wavelength |
1550 / 1310 nm |
| Maximum Power Consumption |
0.66W per module |
| Pack Size |
2 modules |
| Operating Temperature |
0–70°C |
| Fiber Cable Included |
No |
Ubiquiti lists the current module at 1Gbps with a 3km supported cable distance and 0.66W maximum power consumption.
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Performance
- Gigabit fiber networking: Provides 1Gbps optical connectivity for compatible equipment.
- 3km reach: Supports fiber links up to 3km using single-mode fiber.
- BiDi operation: Sends and receives data through one fiber strand.
- Complementary wavelengths: The matched modules use opposite TX/RX wavelength configurations.
- Low power consumption: Each module uses a maximum of 0.66W.
- Stable optical transmission: Designed for reliable fiber connectivity in network infrastructure.
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Smart Features
- BiDi technology reduces the amount of fiber required for a point-to-point connection.
- Matched 2-pack provides the complementary modules required for a BiDi link.
- Color-coded latches help identify the complementary wavelength configurations.
- SFP compatibility makes installation straightforward in supported networking equipment.
- Hot-swappable design allows convenient installation and replacement.
- Low-power operation helps minimize energy consumption.
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Design & Build
- Compact SFP form factor fits standard compatible SFP ports.
- Simplex LC UPC connector requires only one fiber strand.
- Two-module package includes a matched BiDi pair.
- Commercial temperature range: Operates from 0°C to 70°C.
- Fiber cable not included: A compatible single-mode fiber cable must be purchased separately.
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Connectivity
- Simplex LC UPC interface for single-strand fiber connections.
- SFP interface for compatible switches, gateways and other networking equipment.
- 1Gbps data connectivity for Gigabit fiber links.
- 1310/1550nm BiDi operation enables bidirectional communication through one fiber.
- Up to 3km range for extended network connections.
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Use Cases
- Switch-to-switch fiber connections across buildings or network areas.
- Gateway-to-switch links requiring long-distance Gigabit connectivity.
- Campus networks where fiber distances exceed standard copper Ethernet limits.
- CCTV and security networks requiring reliable fiber backhaul.
- ISP and WISP infrastructure using compatible SFP equipment.
- Office and business networks requiring efficient fiber utilization.
- Network expansions where using one fiber strand helps reduce cabling requirements.
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Pros & Cons
| Pros |
Cons |
| Supports up to 3km |
Fiber cable sold separately |
| Uses only one fiber strand |
Limited to 1Gbps |
| Simplex LC UPC connector |
Requires compatible SFP equipment |
| 2-pack includes matched modules |
BiDi modules must be paired correctly |
| Low 0.66W power consumption |
Not designed for multimode fiber |
| Compact SFP form factor |
No copper Ethernet connection |
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) FAQs
What is the UACC-OM-SM-1G-S-2?
It is a 2-pack of 1G BiDi single-mode SFP optical modules designed for fiber links up to 3km.
What distance does it support?
It supports connections up to 3km over compatible single-mode fiber.
Does it use one or two fiber strands?
It uses one fiber strand because it supports BiDi transmission.
What connector does it use?
The modules use a simplex LC UPC connector.
What wavelengths are used?
The complementary modules use 1310nm TX / 1550nm RX and 1550nm TX / 1310nm RX configurations.
Are the modules supplied as a pair?
Yes. The UACC-OM-SM-1G-S-2 is supplied as a 2-pack containing complementary modules.
Is the fiber cable included?
No. The fiber cable is sold separately.
What type of fiber does it require?
It requires single-mode fiber (SMF).
Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) Conclusion
The Ubiquiti Fiber Single-Mode Module 1G BiDi 2-Pack 3km (UACC-OM-SM-1G-S-2) is an efficient solution for extending Gigabit network connections over single-mode fiber. Its BiDi technology, simplex LC UPC connector and 3km transmission range allow network administrators to establish reliable fiber links while using only one fiber strand.
