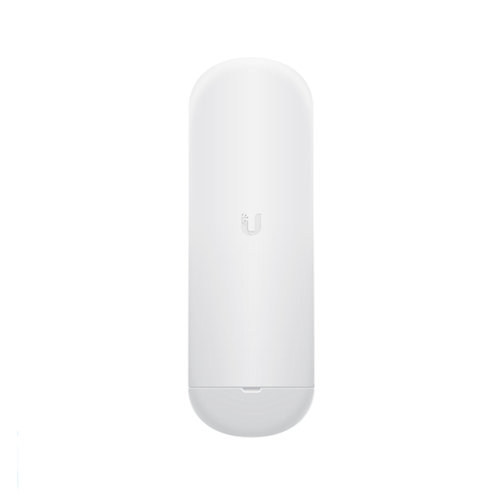

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Key Features
5GHz outdoor airMAX AC wireless CPE.
802.11ac wireless technology.
16dBi integrated dual-polarized antenna.
Up to 450+ Mbps real TCP/IP throughput.
2×2 MIMO architecture.
2× Gigabit Ethernet ports.
Dedicated 2.4GHz Wi-Fi management radio.
Supports Point-to-Point and Point-to-Multipoint deployments.
10/20/30/40/50/60/80 MHz channel bandwidths.
Traffic shaping with burst support.
Dedicated spectral analysis capabilities.
Pole and wall mounting options included.
24V 0.5A Gigabit PoE adapter included.
Warranty: The warranty tendered hereunder, on the electronic product(s) sold under this invoice will be provided exclusively by their respective Authorized Agents/Distributors and are limited to the period indicated from the date ofyour invoice, except otherwise mentioned as per the warranty conditions as carried along with the products(s)
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Overview
The Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) is a compact, high-performance outdoor CPE designed for wireless broadband, Point-to-Point bridging and Point-to-Multipoint networking. It combines airMAX AC technology with a 16dBi dual-polarized antenna to provide reliable long-range wireless connectivity.
The NS-5AC features two Gigabit Ethernet ports, with the secondary port providing PoE output functionality. Its dedicated 2.4GHz management radio makes configuration and monitoring convenient without requiring a wired management connection. The compact enclosure is suitable for residential, commercial, WISP and enterprise outdoor deployments.
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Price in Kenya
Product
Approximate Price
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC)
KSh 17,000 – 20,500
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Key Specs
Specification
Details
Brand
Ubiquiti
Model
NS-5AC
Wireless Technology
airMAX AC
Wireless Standard
802.11ac
Frequency Band
5GHz
Operating Frequency
5150–5875 MHz
Antenna Gain
16dBi
MIMO
2×2
Polarization
Dual Linear
Beamwidth
45° H / 45° V / 45° Elevation
Cross-Polarization Isolation
20dB minimum
Maximum VSWR
1.6:1
Throughput
450+ Mbps
Ethernet Ports
2× Gigabit Ethernet
Management Radio
2.4GHz Wi-Fi
Channel Bandwidth
10/20/30/40/50/60/80 MHz
Power Method
Passive PoE / 802.3af Alternative A
Power Supply
24V 0.5A Gigabit PoE Adapter
Maximum Power Consumption
9W
Dimensions
257 × 84 × 41 mm
Weight
233g
Mounting
Pole and Wall Mount
Operating Temperature
-40°C to 70°C
Operating Humidity
5–95% non-condensing
Specifications are based on Ubiquiti's current NS-5AC technical specifications.
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Performance
Up to 450+ Mbps real TCP/IP throughput supports demanding wireless links.
16dBi antenna gain provides focused 5GHz wireless coverage.
2×2 MIMO improves wireless transmission efficiency.
airMAX AC technology provides efficient wireless communication.
Supports channel bandwidths up to 80 MHz.
Directional antenna characteristics make it suitable for long-range connectivity.
Designed for both Point-to-Point and Point-to-Multipoint applications.
Supports reliable wireless connectivity for broadband and backhaul networks.
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Smart Features
Dedicated 2.4GHz Wi-Fi radio simplifies wireless management.
airMAX AC mode optimizes wireless network performance.
Spectral analysis helps identify sources of RF interference.
Traffic shaping with burst support provides bandwidth management.
Dynamic ACK helps optimize communication over different distances.
SNMP, SSH and web-based management provide flexible administration.
Statistical reporting provides information on data rates, Ethernet link rate, packet errors and wireless distance.
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Design & Build
Compact 257 × 84 × 41 mm design simplifies installation.
Lightweight 233g construction makes mounting easier.
UV-resistant polycarbonate enclosure is designed for outdoor environments.
Pole and wall mounting kits are included.
Four signal-strength indicators assist with antenna alignment.
Operates across a wide -40°C to 70°C temperature range.
Maximum power consumption is only 9W.
Designed for rooftop, pole, wall and tower deployments.
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Connectivity
5GHz wireless connectivity.
2× Gigabit Ethernet RJ45 ports.
Secondary Ethernet port supports PoE output.
Dedicated 2.4GHz management Wi-Fi.
Passive PoE power support.
802.3af Alternative A support.
Supports Point-to-Point wireless bridging.
Supports Point-to-Multipoint CPE deployments.
Compatible with airMAX AC wireless infrastructure.
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Use Cases
Point-to-Point Links: Connect two buildings or network locations using a dedicated wireless link.
WISP Networks: Deploy as customer-premises equipment for wireless Internet service providers.
Building-to-Building Connectivity: Connect offices, warehouses, schools and other facilities.
Wireless Backhaul: Create high-speed connections between network infrastructure locations.
Remote Network Extension: Extend connectivity to areas where wired installation is difficult.
CCTV Backhaul: Transport IP surveillance traffic between remote locations.
Campus Networks: Provide wireless connectivity across large commercial or institutional properties.
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Pros & Cons
Pros
Cons
450+ Mbps throughput
5GHz requires suitable line of sight
16dBi integrated antenna
Requires accurate alignment
2× Gigabit Ethernet ports
Not designed as a conventional indoor Wi-Fi access point
Dedicated management Wi-Fi
Passive PoE installation is required
2×2 MIMO technology
Performance can be affected by RF interference
Supports 80 MHz channels
—
Compact and lightweight
—
Pole and wall mounting supported
—
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) FAQs
What is Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC)?
It is a 5GHz airMAX AC wireless CPE designed for long-range Point-to-Point, Point-to-Multipoint and broadband networking applications.
What is the throughput of Ubiquiti airMAX NanoStation AC?
The NS-5AC supports up to 450+ Mbps real TCP/IP throughput.
What antenna gain does the NS-5AC have?
The Ubiquiti NS-5AC features an integrated 16dBi dual-polarized antenna.
How many Ethernet ports does the NS-5AC have?
It has two Gigabit Ethernet ports, with the secondary port supporting PoE output functionality.
Does Ubiquiti airMAX NanoStation AC support 802.11ac?
Yes. The NS-5AC uses airMAX AC technology based on 802.11ac technology.
Does the NS-5AC have a management Wi-Fi radio?
Yes. It includes a dedicated 2.4GHz Wi-Fi management radio for configuration and administration.
What channel widths does the NS-5AC support?
It supports 10, 20, 30, 40, 50, 60 and 80 MHz channel bandwidths.
Is Ubiquiti NS-5AC suitable for outdoor use?
Yes. It features a UV-resistant enclosure and is designed for outdoor installations, with an operating temperature range of -40°C to 70°C.
Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Conclusion
The Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) is a compact and high-performance wireless CPE for long-range networking. With 16dBi antenna gain, 2×2 MIMO, 450+ Mbps throughput, dual Gigabit Ethernet ports and dedicated management Wi-Fi, it is well suited for WISP networks, wireless backhaul, building-to-building connections and Point-to-Point or Point-to-Multipoint deployments.
