Stock Status:
Condition: New
SKU : 6829M68

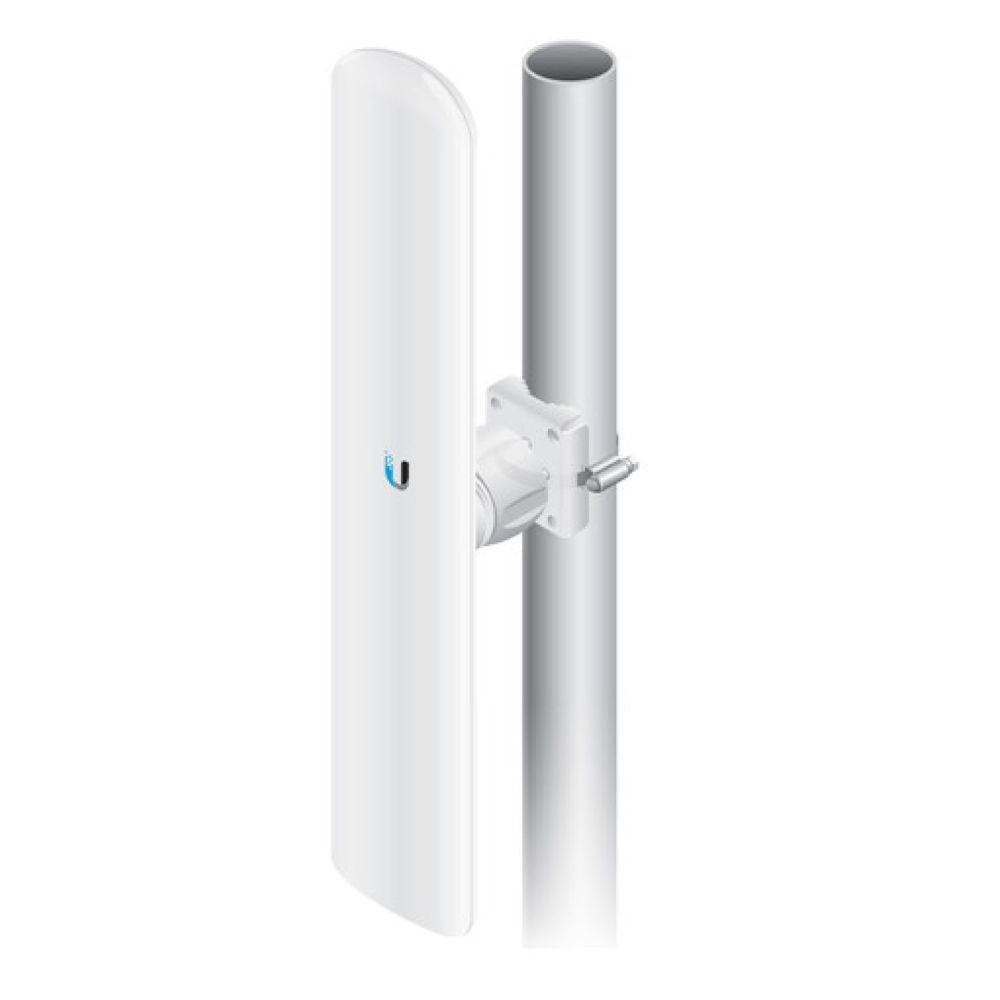

The Ubiquiti airMAX 5GHz LiteAP AC Access Point LAP-120 is a lightweight and cost-effective outdoor wireless access point designed for point-to-multipoint networking. It combines a 5GHz 2×2 MIMO radio with an integrated 16dBi antenna, providing wide-area wireless coverage for WISP, business, campus, and outdoor networking applications.
The integrated sector antenna provides 120° coverage, allowing the LAP-120 to serve multiple wireless clients from a single installation point. Its Gigabit Ethernet interface helps provide a high-speed wired connection to the network, while passive PoE simplifies installation by carrying power and data over Ethernet.
| Product | Approximate Price |
|---|---|
| Ubiquiti airMAX 5GHz LiteAP AC Access Point LAP-120 | KSh 13,500 – 19,500 |
| Specification | Details |
|---|---|
| Model | LAP-120 |
| Product Type | Outdoor Access Point |
| Frequency Band | 5GHz |
| Frequency Range | 5150–5875MHz Worldwide |
| Wireless Technology | airMAX AC |
| MIMO | 2×2 |
| Antenna Gain | 16dBi |
| Coverage | 120° Sector |
| Networking Interface | 1 × Gigabit Ethernet |
| Power Method | Passive PoE |
| PoE Adapter | 24V, 0.5A Gigabit PoE |
| Maximum Power Consumption | 8W |
| Dimensions | 452.3 × 78.7 × 54.4mm |
| Weight | 420g |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5–95% Noncondensing |
| Wind Survivability | 200km/h |
| Mounting | Pole Mount |
| Memory | 64MB |
These specifications are based primarily on Ubiquiti's technical specifications and datasheet.
Ubiquiti lists features including airMAX AC mode, traffic shaping, 30/50/60MHz channels, bridging, routing, SNMP, SSH, QoS, and distance adjustment.
The LAP-120's compact design weighs only 420g and has a specified wind survivability of 200km/h.
| Pros | Cons |
|---|---|
| 16dBi integrated antenna | 5GHz coverage can be affected by obstacles |
| Wide 120° sector coverage | No integrated Wi-Fi 6 technology |
| 2×2 MIMO | Requires passive PoE |
| airMAX AC technology | Designed primarily for outdoor deployments |
| Gigabit Ethernet | Directional sector coverage rather than 360° coverage |
| Lightweight 420g design | Requires suitable mounting location |
| 200km/h wind survivability | — |
| Point-to-multipoint support | — |
| Affordable outdoor wireless solution | — |
The LAP-120 is a 5GHz outdoor access point with an integrated 16dBi antenna and 120° sector coverage designed for point-to-point and point-to-multipoint wireless networks.
The LAP-120 supports the 5GHz band, with Ubiquiti specifying a worldwide operating range of 5150–5875MHz.
The LAP-120 features an integrated 16dBi antenna.
Yes. The LAP-120 is designed with an integrated sector antenna providing approximately 120° horizontal coverage, making it suitable for point-to-multipoint deployments.
Yes. The LAP-120 uses 2×2 MIMO with airMAX AC technology.
Yes. It features one 10/100/1000 Gigabit Ethernet port.
The LAP-120 uses passive PoE and is supplied with a 24V, 0.5A Gigabit PoE adapter.
Yes. It is designed for outdoor installation and has an operating temperature range of -40°C to 70°C and wind survivability of up to 200km/h.
Yes. Its 120° sector coverage, 16dBi antenna, airMAX AC technology, and point-to-multipoint capabilities make it suitable for WISP and outdoor broadband deployments.
The Ubiquiti airMAX 5GHz LiteAP AC Access Point LAP-120 is a lightweight and cost-effective solution for outdoor 5GHz wireless networking. With a 16dBi integrated antenna, 120° sector coverage, 2×2 MIMO, airMAX AC technology, and Gigabit Ethernet, it provides reliable connectivity for point-to-multipoint and point-to-point deployments.
