Stock Status:
Condition: New
SKU : 1683M65

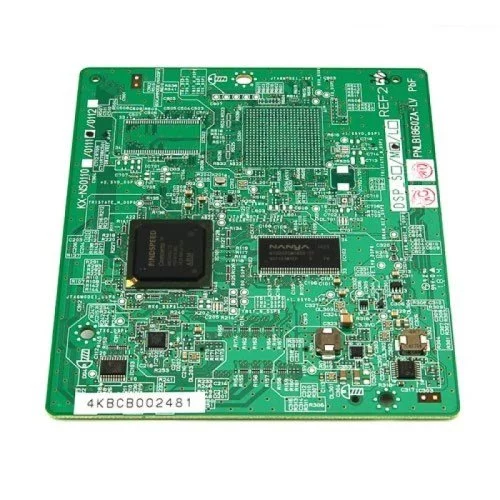

The Panasonic KX-NS5110X is a DSP expansion card designed to provide additional VoIP processing resources for compatible Panasonic PBX systems. It provides 63 DSP resources/channels and supports G.711, G.722 and G.729A codecs.
The Panasonic KX-NS5110X VoIP DSP Card is a digital signal processor expansion card designed for Panasonic communication systems. It provides additional DSP resources for VoIP calls, conferencing, unified messaging, voicemail, auto attendant and DISA/OGM functions.
The card provides 63 voice channels and supports several commonly used voice codecs, including G.711, G.722 and G.729A. It also supports the T.38 fax transmission protocol for fax-over-IP applications.
The KX-NS5110X is designed for installation into the appropriate DSP slot of compatible Panasonic PBX systems, making it useful for businesses that need to expand their IP communication capabilities.
| Product Price | |
|---|---|
| Panasonic KX-NS5110X VoIP DSP Card | KSh 23,000 |
The listed selling price for this product is KSh 23,000.
| Feature | Details |
|---|---|
| Brand | Panasonic |
| Model | KX-NS5110X |
| Product Type | VoIP DSP Card |
| VoIP Channels | 63 |
| Codec | G.711 / G.722 / G.729A |
| Fax Support | T.38 |
| IP Phone Licenses | 4 |
| Installation | DSP Slot |
| Main Function | VoIP Processing |
| Price | KSh 23,000 |
The KX-NS5110 DSP S card provides 63 DSP resources, according to Panasonic installation documentation.
The KX-NS5110X provides additional digital signal processing resources for IP-based telephone communication. Its 63-channel capacity allows compatible Panasonic PBX systems to handle multiple VoIP resources.
Performance features include:
The card is particularly useful for businesses that need additional VoIP processing capacity without replacing their existing compatible PBX system.
The DSP card supports several voice codecs used in IP telephony.
Supported codecs include:
G.711 is commonly used for standard voice communication, while G.722 supports wideband voice applications. G.729A provides compressed voice transmission where bandwidth efficiency is important.
The combination allows compatible Panasonic communication systems to support different VoIP communication requirements.
The KX-NS5110X supports the T.38 fax transmission protocol, allowing compatible fax applications to operate over IP-based communication systems.
T.38 support is useful for organizations that continue to use fax services while moving their telephone infrastructure toward VoIP.
The card includes an activated license for 4 IP proprietary telephones. This provides additional support for compatible Panasonic IP telephone deployments.
The card can therefore be useful for organizations expanding their IP extensions and integrating additional IP communication devices into their Panasonic PBX environment.
The KX-NS5110X is installed into the appropriate DSP slot on the compatible Panasonic PBX base unit.
Installation features include:
Panasonic installation documentation identifies the DSP S card as an optional card installed in the PBX and states that the DSP resources are required for IP trunks and/or IP extensions.
The Panasonic KX-NS5110X is suitable for:
| Pros | Cons |
|---|---|
| 63 VoIP channels | Requires a compatible Panasonic PBX |
| Supports G.711 | Not a standalone telephone system |
| Supports G.722 | Requires professional installation |
| Supports G.729A | Designed for specific Panasonic systems |
| T.38 fax support | |
| Supports conferencing | |
| Supports unified messaging | |
| 4 IP phone licenses | |
| Compact expansion design |
The Panasonic KX-NS5110X is a VoIP digital signal processor expansion card for compatible Panasonic PBX systems.
The DSP S card provides 63 DSP resources/voice channels.
It supports G.711, G.722 and G.729A codecs.
Yes. It supports the T.38 fax transmission protocol.
Yes. The card includes an activated license for 4 IP proprietary telephones.
Yes. The DSP resources can be used for conference calls and other supported unified communication functions.
Yes. The DSP card supports resources used for unified messaging, voicemail and auto attendant functions.
It is installed into the appropriate DSP slot of a compatible Panasonic PBX base unit.
Yes. It is designed to expand VoIP and IP communication capabilities in business telephone systems.
The listed price is KSh 23,000.
The Panasonic KX-NS5110X VoIP DSP Card is a practical expansion solution for compatible Panasonic PBX systems that require additional VoIP processing resources. With 63 VoIP channels, G.711, G.722 and G.729A codec support, T.38 fax support, conferencing, unified messaging and 4 IP phone licenses, it provides useful functionality for business communication systems.
Its internal DSP-slot installation makes it suitable for expanding compatible Panasonic telephone systems without replacing the entire PBX infrastructure.
Priced at KSh 23,000, the Panasonic KX-NS5110X VoIP DSP Card is a suitable option for businesses looking to expand their Panasonic PBX VoIP capabilities.
