D-Link DMC-540SSC Single-Mode Fiber Media Converter Price in Kenya

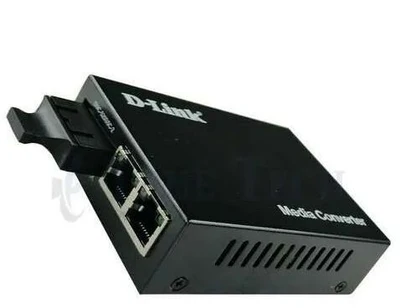

D-Link DMC-540SSC Single-Mode Fiber Media Converter

KSh 5,500

Stock Status:

Condition: New

SKU : 2472M65

D-Link DMC-540SSC Single-Mode Fiber Media Converter Key Features

10/100BASE-TX to 100BASE-FX Fast Ethernet media conversion
Single-mode fiber connectivity
Up to 40 km fiber transmission distance
1 x 10/100BASE-TX RJ-45 port
1 x 100BASE-FX SC fiber port
1310 nm operating wavelength
Supports half-duplex and full-duplex operation
Auto-MDI/MDIX support
Store-and-forward transmission
Full wire-speed forwarding
Standalone or chassis installation
Front-panel diagnostic LEDs
Plug-and-play installation
IEEE 802.3 and IEEE 802.3u compliant

Warranty: The warranty tendered hereunder, on the electronic product(s) sold under this invoice will be provided exclusively by their respective Authorized Agents/Distributors and are limited to the period indicated from the date ofyour invoice, except otherwise mentioned as per the warranty conditions as carried along with the products(s)

Warranty Guide

Description

D-Link DMC-540SSC Single-Mode Fiber Media Converter Introduction

The D-Link DMC-540SSC Single-Mode Fiber Media Converter is designed to convert 10/100BASE-TX copper Ethernet signals into 100BASE-FX single-mode fiber signals. It provides a practical way to extend Fast Ethernet networks beyond the standard 100-meter limitation of copper Ethernet cabling.

With support for single-mode fiber distances of up to 40 km and a 1310 nm wavelength, the DMC-540SSC is suitable for long-distance network connections between buildings, offices, campuses, surveillance locations, and other remote network points.

D-Link DMC-540SSC Single-Mode Fiber Media Converter Price in Kenya

Product	Price
D-Link DMC-540SSC Single-Mode Fiber Media Converter	KSh 5,500

D-Link DMC-540SSC Single-Mode Fiber Media Converter Key Specifications

Specification	Details
Model	DMC-540SSC
Device Type	Fast Ethernet Media Converter
Copper Port	1 x 10/100BASE-TX RJ-45
Fiber Port	1 x 100BASE-FX SC
Fiber Type	Single-mode
Fiber Connector	SC
Maximum Fiber Distance	Up to 40 km
Wavelength	1310 nm
Copper Distance	Up to 100 m
Ethernet Speed	10/100 Mbps
Full-Duplex Rate	Up to 200 Mbps
Duplex Mode	Half-duplex / Full-duplex
Standards	IEEE 802.3 and IEEE 802.3u
Auto-MDI/MDIX	Yes
Transmission Mode	Store-and-forward
Forwarding	Full wire-speed
Power Input	5V/1A external adapter
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	5% to 90% RH non-condensing
Dimensions	95 × 70 × 26 mm
Installation	Standalone or Chassis

D-Link DMC-540SSC Single-Mode Fiber Media Converter Performance

Converts 10/100 Mbps copper Ethernet into 100 Mbps single-mode fiber connectivity.
Supports fiber transmission distances of up to 40 km.
Uses a 1310 nm wavelength for long-distance single-mode fiber communication.
Full-duplex operation supports simultaneous transmission and reception.
Store-and-forward technology helps provide reliable packet handling.
Full wire-speed forwarding helps maintain efficient Fast Ethernet performance.
Auto-MDI/MDIX simplifies copper Ethernet connections.

D-Link DMC-540SSC Single-Mode Fiber Media Converter Build Quality & Design

Features a compact 95 × 70 × 26 mm enclosure.
Designed for convenient standalone installation.
Can also be installed in a compatible D-Link media converter chassis.
Front-panel LED indicators provide quick visibility of network status.
Compact construction makes it suitable for installations with limited space.
Chassis installation allows multiple compatible media converters to be deployed in a centralized location.

D-Link DMC-540SSC Single-Mode Fiber Media Converter Connectivity & Compatibility

Includes one 10/100BASE-TX RJ-45 copper port.
Includes one 100BASE-FX SC fiber port.
Supports compatible single-mode fiber for distances of up to 40 km.
Supports Cat 3, Cat 4, Cat 5 and Cat 5e UTP for appropriate copper Ethernet connections.
Compatible with IEEE 802.3 and IEEE 802.3u networking standards.
Auto-MDI/MDIX provides flexible copper Ethernet connectivity.
Suitable for compatible D-Link media converter chassis installations.

D-Link DMC-540SSC Single-Mode Fiber Media Converter Ideal Use Cases

Building-to-building network connections
Campus network extensions
Long-distance office networking
CCTV and IP surveillance infrastructure
ISP and telecommunications networks
Industrial network installations
Remote network connectivity
Fiber backbone extensions
Connecting remote Ethernet equipment

D-Link DMC-540SSC Single-Mode Fiber Media Converter Pros and Cons

Pros	Cons
Supports fiber distances up to 40 km	Limited to Fast Ethernet speeds
Single-mode fiber support	Uses SC fiber connectivity
1310 nm wavelength	Requires compatible single-mode fiber
Auto-MDI/MDIX	External power adapter required
Full and half-duplex operation	—
Standalone or chassis installation	—
Compact design	—

D-Link DMC-540SSC Single-Mode Fiber Media Converter FAQs

What is the D-Link DMC-540SSC used for?

The DMC-540SSC is used to convert 10/100BASE-TX copper Ethernet signals into 100BASE-FX single-mode fiber signals for longer-distance network connectivity.

What is the maximum fiber distance supported by the DMC-540SSC?

The DMC-540SSC supports single-mode fiber transmission distances of up to 40 km.

What type of fiber does the DMC-540SSC use?

It uses single-mode fiber with an SC connector.

What wavelength does the DMC-540SSC use?

The converter operates at a 1310 nm wavelength.

How many ports does the DMC-540SSC have?

It has one 10/100BASE-TX RJ-45 port and one 100BASE-FX SC fiber port.

Does the DMC-540SSC support full duplex?

Yes. It supports both half-duplex and full-duplex operation.

Can the DMC-540SSC be installed in a chassis?

Yes. It can be used as a standalone converter or installed in a compatible D-Link media converter chassis.

D-Link DMC-540SSC Single-Mode Fiber Media Converter Conclusion

The D-Link DMC-540SSC Single-Mode Fiber Media Converter is a reliable solution for extending Fast Ethernet networks over long-distance single-mode fiber. With a 40 km fiber reach, 1310 nm wavelength, 10/100BASE-TX copper interface, 100BASE-FX SC fiber interface, Auto-MDI/MDIX, and full or half-duplex support, it is suitable for enterprise networks, campuses, CCTV systems, and building-to-building connections. At KSh 5,500, it offers a practical option for connecting copper Ethernet equipment to long-distance single-mode fiber infrastructure.
