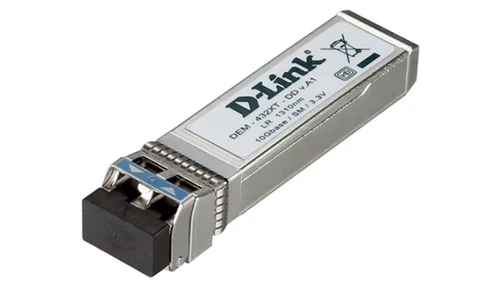

The D-Link DEM-432XT-DD 10 Gigabit Single Mode Transceiver is a high-performance SFP+ optical module designed to provide reliable 10 Gigabit Ethernet connectivity over single-mode fiber. Operating at 1310 nm, it supports transmission distances of up to 10 km, making it suitable for long-distance network connections.
The DEM-432XT-DD features Digital Diagnostics Monitoring for real-time monitoring of important operating parameters. Its compact, hot-pluggable SFP+ design makes it suitable for compatible switches and networking equipment in enterprise, data center, and service provider environments.
| Product | Price |
|---|---|
| D-Link DEM-432XT-DD 10 Gigabit Single Mode Transceiver | KSh 10,500 |
| Specification | Details |
|---|---|
| Model | DEM-432XT-DD |
| Transceiver Type | SFP+ |
| Standard | IEEE 802.3ae 10GBASE-LR |
| Data Rate | 10 Gbps |
| Fiber Type | Single-mode |
| Fiber Specification | 9/125 μm |
| Wavelength | 1310 nm |
| Maximum Distance | Up to 10 km |
| Connector | Duplex LC |
| Operation | Full Duplex |
| DDM | Yes |
| Hot Pluggable | Yes |
| MSA Compliant | Yes |
| RoHS Compliant | Yes |
| TX Optical Power | -8.2 to 0.5 dBm |
| RX Optical Power | -12.6 to 0.5 dBm |
| Receiver Sensitivity | -12.6 dBm |
| Power Supply | 3.3V |
| Maximum Input Current | 285 mA |
| Power Budget | 4.4 to 17.6 dB |
| Operating Temperature | -5°C to 70°C |
| Dimensions | 14.8 × 56.5 × 11.85 mm |
| Weight | Approximately 22 g |
| Pros | Cons |
|---|---|
| Supports 10 Gbps Ethernet | Requires single-mode fiber |
| Up to 10 km transmission distance | More expensive than short-range SFP+ modules |
| 1310 nm wavelength | Requires compatible SFP+ equipment |
| Digital Diagnostics Monitoring | Duplex LC fiber connection required |
| Hot-pluggable design | — |
| Compact SFP+ form factor | — |
What is the D-Link DEM-432XT-DD used for?
The D-Link DEM-432XT-DD is used to provide 10 Gigabit Ethernet connectivity over single-mode fiber between compatible networking devices.
What speed does the D-Link DEM-432XT-DD support?
It supports 10 Gbps full-duplex Ethernet.
What is the maximum transmission distance?
The DEM-432XT-DD supports distances of up to 10 km over compatible single-mode fiber.
What wavelength does the DEM-432XT-DD use?
The transceiver operates at 1310 nm.
What type of fiber does the DEM-432XT-DD require?
It is designed for 9/125 μm single-mode fiber.
What connector does the DEM-432XT-DD use?
It uses a duplex LC connector.
Does the DEM-432XT-DD support DDM?
Yes. Digital Diagnostics Monitoring allows real-time monitoring of important optical and operating parameters.
The D-Link DEM-432XT-DD 10 Gigabit Single Mode Transceiver is a reliable solution for extending high-speed Ethernet networks over long-distance single-mode fiber. With 10 Gbps performance, 1310 nm transmission, up to 10 km reach, duplex LC connectivity, DDM, and a hot-pluggable SFP+ design, it is well suited for enterprise networks, data centers, service providers, and network backbone applications. At KSh 10,500, it provides a practical option for adding long-range 10 Gigabit fiber connectivity to compatible networking equipment.
