Stock Status:
Condition: New
SKU : 9662M85
Wi-Fi 6 dual-band 4×4:4 MU-MIMO.
Up to 6Gbps aggregate wireless throughput.
Up to 300m coverage range.
Supports up to 512 concurrent clients.
2.5Gbps RJ45 and 2.5Gbps SFP ports.
PoE and PoE+ support.
IP68-level weatherproofing.
8 internal antennas.
Built-in controller for up to 50 GWN APs.

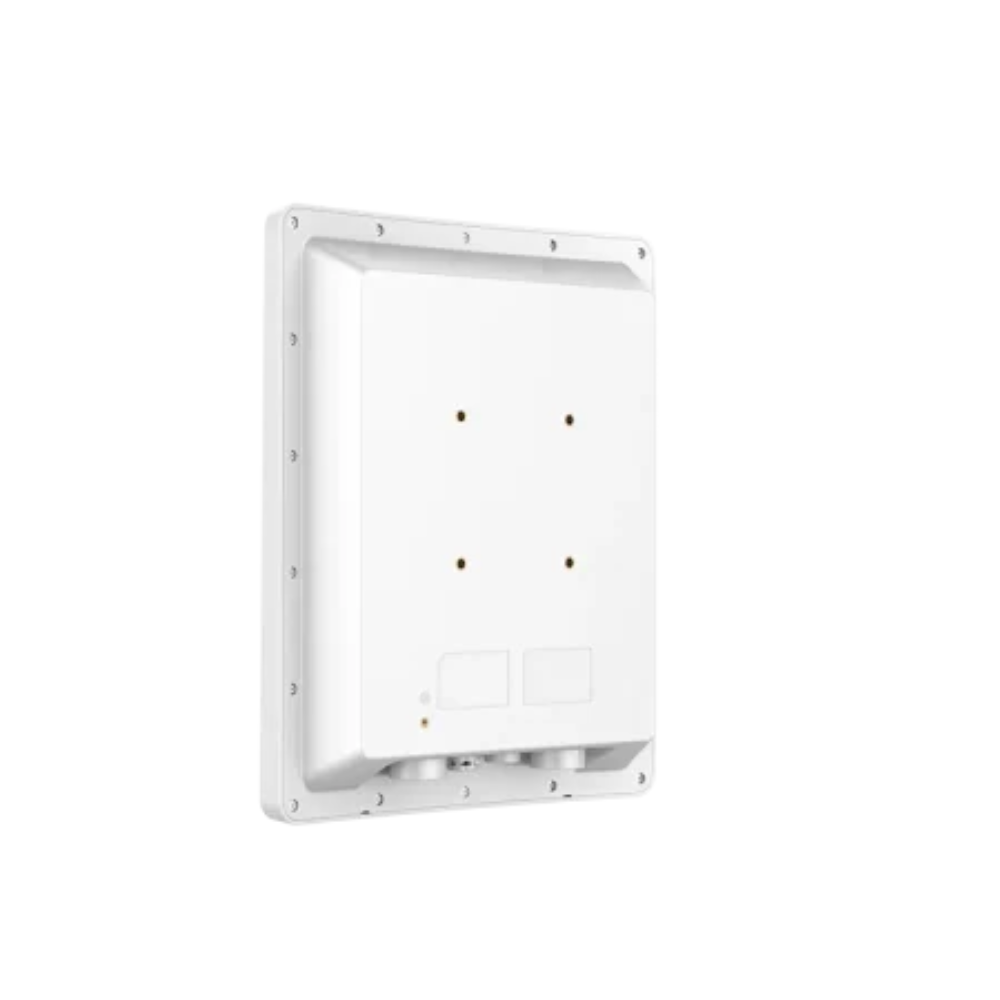

The Grandstream GWN7664ELR Access Point is a high-performance outdoor Wi-Fi 6 access point designed for medium-to-large businesses and enterprise networks. It combines dual-band 4×4:4 MU-MIMO, OFDMA technology, high-speed 2.5Gbps wired connectivity, long-range coverage, and support for up to 512 concurrent clients. Its rugged weatherproof construction makes it suitable for demanding outdoor wireless deployments.
| Product | Price in Kenya |
|---|---|
| Grandstream GWN7664ELR Access Point | KSh 26,000 – KSh 31,000 |
| Specification | Details |
|---|---|
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Generation | Wi-Fi 6 |
| Wireless Bands | 2.4GHz and 5GHz |
| 2.4GHz Speed | Up to 1,147Mbps |
| 5GHz Speed | Up to 4,804Mbps |
| Aggregate Throughput | Up to 6Gbps |
| MIMO | 4×4:4 MU-MIMO |
| Technology | OFDMA |
| Antennas | 8 internal antennas |
| 2.4GHz Antenna Gain | 5.5dBi |
| 5GHz Antenna Gain | 6.5dBi |
| Concurrent Clients | Up to 512 |
| Ethernet | 1 × 2.5Gbps RJ45 |
| SFP | 1 × 2.5Gbps SFP |
| PoE | IEEE 802.3at PoE+ |
| Maximum Power Consumption | 24W |
| SSIDs | Up to 32 total, 16 per radio |
| Coverage | Up to 300m |
| Channel Bandwidth | Up to 160MHz on 5GHz |
| Security | WPA, WPA2, WPA3, secure boot |
| Mounting | Wall or pole mount |
| Weather Protection | IP68-level |
| Operating Temperature | -30°C to 60°C |
| Dimensions | 260 × 310 × 59mm |
| Weight | Approx. 1.445kg |
Wi-Fi 6 improves wireless efficiency in busy network environments.
4×4:4 MU-MIMO provides high wireless capacity for multiple clients.
OFDMA improves spectrum efficiency when serving multiple compatible devices.
Up to 6Gbps aggregate wireless throughput supports demanding applications.
Supports up to 512 concurrent Wi-Fi clients.
160MHz channel bandwidth supports higher speeds on compatible 5GHz devices.
Advanced QoS helps prioritize real-time applications such as voice and video.
Up to 300m coverage is available under suitable environmental conditions.
Rugged outdoor construction.
IP68-level weatherproof protection.
Eight internal antennas.
Wall and pole mounting support.
Designed for demanding outdoor environments.
Suitable for operation between -30°C and 60°C.
Compact enterprise-oriented design despite its high wireless capacity.
1 × 2.5Gbps RJ45 Ethernet port.
1 × 2.5Gbps SFP port.
Supports PoE and PoE+ power adaptation.
Compatible with Wi-Fi 6 and earlier Wi-Fi standards.
Supports IPv4 and IPv6.
Supports VLAN, 802.1Q, 802.1p and 802.1x.
Supports mesh networking and captive portals.
Embedded controller manages up to 50 local GWN access points.
GDMS Networking provides cloud-based management.
GWN Manager provides on-premises management.
Enterprise outdoor Wi-Fi networks.
Large business premises.
Warehouses and industrial facilities.
Schools and university campuses.
Hospitals and healthcare facilities.
Hotels and hospitality properties.
Multi-floor office environments.
Commercial compounds.
Voice-over-Wi-Fi deployments.
High-density wireless networks.
| Pros | Cons |
|---|---|
| Wi-Fi 6 technology | No 6GHz band |
| Up to 6Gbps wireless throughput | Requires suitable PoE+ infrastructure |
| Up to 512 concurrent clients | Larger than basic access points |
| Up to 300m coverage | Actual coverage varies by environment |
| 2.5Gbps RJ45 port | Higher installation requirements |
| 2.5Gbps SFP port | Designed primarily for enterprise deployments |
| 4×4:4 MU-MIMO and OFDMA | Advanced features may require network expertise |
| IP68-level weatherproofing | Higher power consumption than basic APs |
Is the Grandstream GWN7664ELR suitable for outdoor use?
Yes. It is designed as a long-range outdoor Wi-Fi 6 access point and provides IP68-level weatherproof capability.
What is the coverage range of the GWN7664ELR?
Grandstream specifies coverage of up to 300 meters, although actual range depends on obstacles, interference, installation position and environmental conditions.
How many clients can the GWN7664ELR support?
It supports up to 512 concurrent Wi-Fi client devices.
Is the GWN7664ELR a Wi-Fi 6 access point?
Yes. It supports IEEE 802.11ax Wi-Fi 6 technology.
What wired connections does the GWN7664ELR provide?
It has one 2.5Gbps RJ45 port and one 2.5Gbps SFP port.
Does the GWN7664ELR support PoE?
Yes. It supports PoE and PoE+ with automatic power adaptation. The specifications list IEEE 802.3at PoE+.
Does it support WPA3?
Yes. WPA3 is supported alongside WPA and WPA2 security options.
Can it manage other Grandstream access points?
Yes. Its embedded controller can manage up to 50 local GWN access points. GDMS Networking and GWN Manager provide additional management options.
The Grandstream GWN7664ELR Access Point is a powerful outdoor Wi-Fi 6 solution for enterprise and large-scale wireless networks. Its 4×4:4 MU-MIMO, 6Gbps aggregate throughput, 512-client capacity, 300m coverage, 2.5Gbps RJ45 and SFP interfaces, PoE+ support, and IP68-level weatherproofing make it suitable for demanding business, institutional and industrial deployments.
