Stock Status:
Condition: New
SKU : 5417M61
Dual-band Wi-Fi 6 with 2×2:2 MIMO.
Up to 3Gbps aggregate wireless throughput.
Up to 300-meter coverage.
Supports up to 256 concurrent clients.
1× Gigabit RJ45 and 1× 2.5Gbps SFP port.
PoE and PoE+ support.
IP68-level weatherproofing.
BLE 5.2 support.
Built-in controller for up to 50 GWN APs.

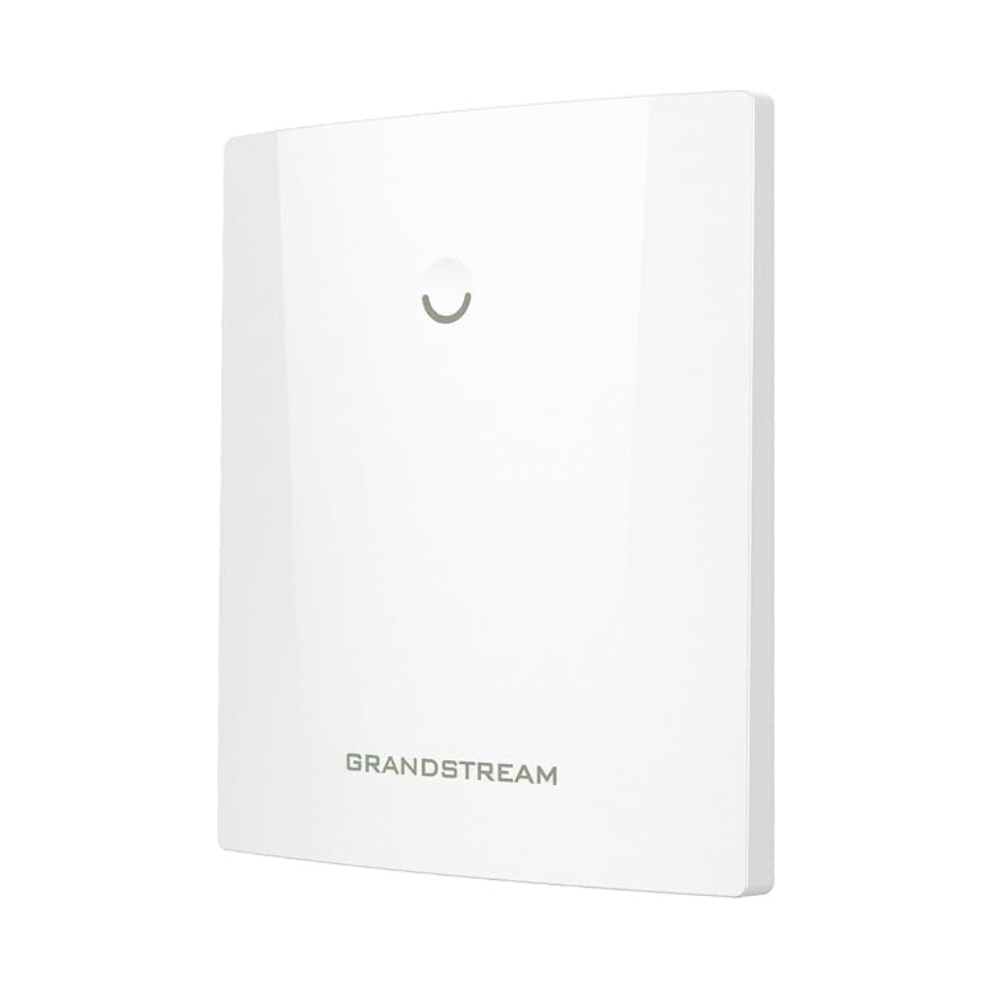

The Grandstream GWN7660ELR Access Point is an enterprise-grade long-range Wi-Fi 6 access point designed for demanding indoor and outdoor wireless deployments. It combines dual-band 2×2:2 MIMO, OFDMA, up to 3Gbps aggregate wireless throughput, extended coverage, and high client capacity. Its weatherproof construction, Gigabit Ethernet, 2.5Gbps SFP connectivity, and PoE support make it suitable for businesses, warehouses, campuses, hospitals, schools, and other large environments.
| Product | Price in Kenya |
|---|---|
| Grandstream GWN7660ELR Access Point | KSh 15,000 – KSh 20,000 |
| Specification | Details |
|---|---|
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax Wi-Fi 6 |
| Wireless Bands | 2.4GHz and 5GHz |
| 2.4GHz Speed | Up to 573.5Mbps |
| 5GHz Speed | Up to 2.4Gbps |
| Aggregate Throughput | Up to 3Gbps |
| MIMO | 2×2:2 on both bands |
| Antennas | 5 internal antennas |
| 2.4GHz Antenna Gain | 5.5dBi |
| 5GHz Antenna Gain | 6.0dBi |
| Concurrent Clients | Up to 256 |
| Network Interfaces | 1× 1Gbps RJ45 + 1× 2.5Gbps SFP |
| PoE | IEEE 802.3af/802.3at |
| Maximum Power Consumption | 13W |
| SSIDs | Up to 32 total, 16 per radio |
| Coverage | Up to 300m |
| Bluetooth | BLE 5.2 |
| Security | WPA/WPA2, WPA3, secure boot |
| Mounting | Wall or pole mount |
| Weather Protection | IP68-level |
| Operating Temperature | -30°C to 60°C |
| Dimensions | 270 × 230 × 57mm |
| Weight | Approx. 1kg including brackets |
Wi-Fi 6 technology provides improved wireless efficiency in busy networks.
2×2:2 MIMO supports simultaneous wireless transmission and reception.
OFDMA improves spectrum efficiency when serving multiple compatible devices.
Up to 3Gbps aggregate wireless throughput supports demanding network applications.
Supports up to 256 concurrent Wi-Fi clients.
160MHz channel bandwidth support enables higher throughput on compatible 5GHz devices.
Advanced QoS helps prioritize voice, video, and other latency-sensitive traffic.
Up to 300m coverage is available under suitable environmental conditions.
Outdoor-rated weatherproof construction.
IP68-level weatherproof and dust protection.
Heat-resistant design for challenging outdoor environments.
Five internal antennas provide optimized dual-band wireless coverage.
Wall and pole mounting options.
Operates from -30°C to 60°C.
Designed for warehouses, campuses, hospitals, schools, offices, and commercial compounds.
1× 10/100/1000Mbps RJ45 Ethernet port.
1× 2.5Gbps SFP port.
Supports IEEE 802.3af and 802.3at PoE.
Supports Wi-Fi 6 and previous 802.11 standards.
Supports VLAN, QoS, IPv4, IPv6, 802.1Q, 802.1p, and 802.1x.
Supports mesh networking and captive portals.
Embedded controller manages up to 50 local GWN access points.
GDMS Networking supports cloud-based management.
GWN Manager provides on-premises management for larger deployments.
Enterprise Wi-Fi networks.
Outdoor business connectivity.
Warehouses and industrial facilities.
Schools and university campuses.
Hospitals and healthcare facilities.
Hotels and hospitality properties.
Large offices and commercial compounds.
Multi-floor buildings.
Voice-over-Wi-Fi deployments.
High-density wireless environments.
| Pros | Cons |
|---|---|
| Wi-Fi 6 technology | Higher deployment requirements |
| Up to 3Gbps wireless throughput | No 6GHz band |
| Up to 300m coverage | Actual coverage varies by environment |
| Supports up to 256 clients | Requires suitable PoE infrastructure |
| 2.5Gbps SFP connectivity | More advanced than basic APs |
| IP68-level weatherproofing | Outdoor installation requires careful positioning |
| PoE and PoE+ support | Higher cost than entry-level access points |
| Built-in AP controller | Advanced features require network configuration |
Is the Grandstream GWN7660ELR suitable for outdoor use?
Yes. It is designed as a weatherproof long-range access point and has IP68-level protection.
What is the maximum coverage of the GWN7660ELR?
Grandstream specifies coverage of up to 300 meters, although actual coverage depends on obstacles, interference, installation, and environmental conditions.
How many clients can the GWN7660ELR support?
It supports up to 256 concurrent Wi-Fi client devices.
Is the GWN7660ELR a Wi-Fi 6 access point?
Yes. It supports IEEE 802.11ax, which is the Wi-Fi 6 standard.
What Ethernet connections does it have?
It has one 1Gbps RJ45 Ethernet port and one 2.5Gbps SFP port.
Does the GWN7660ELR support PoE?
Yes. It supports both IEEE 802.3af PoE and IEEE 802.3at PoE+.
Does the GWN7660ELR support WPA3?
Yes. WPA3 is included among its supported wireless security options.
Can the GWN7660ELR manage other access points?
Yes. Its embedded controller can manage up to 50 local GWN access points. GDMS Networking and GWN Manager provide additional management options.
The Grandstream GWN7660ELR Access Point provides long-range Wi-Fi 6 connectivity for organizations requiring reliable coverage and high client capacity. With up to 3Gbps aggregate wireless throughput, 256-client support, 300m coverage, dual-band 2×2:2 MIMO, 2.5Gbps SFP connectivity, PoE support, and IP68-level weatherproofing, it is well suited to demanding enterprise and outdoor wireless deployments.
