Stock Status:
Condition: New
SKU : 1869M71
Dual-band 802.11ac Wave-2 Wi-Fi.
4×4:4 MIMO and MU-MIMO.
Up to 2.33Gbps wireless throughput.
Up to 300-meter coverage.
Supports 250+ concurrent clients.
2× Gigabit Ethernet ports.
IEEE 802.3af and 802.3at PoE.
IP66-level weatherproof design.
Built-in controller for up to 50 local GWN APs

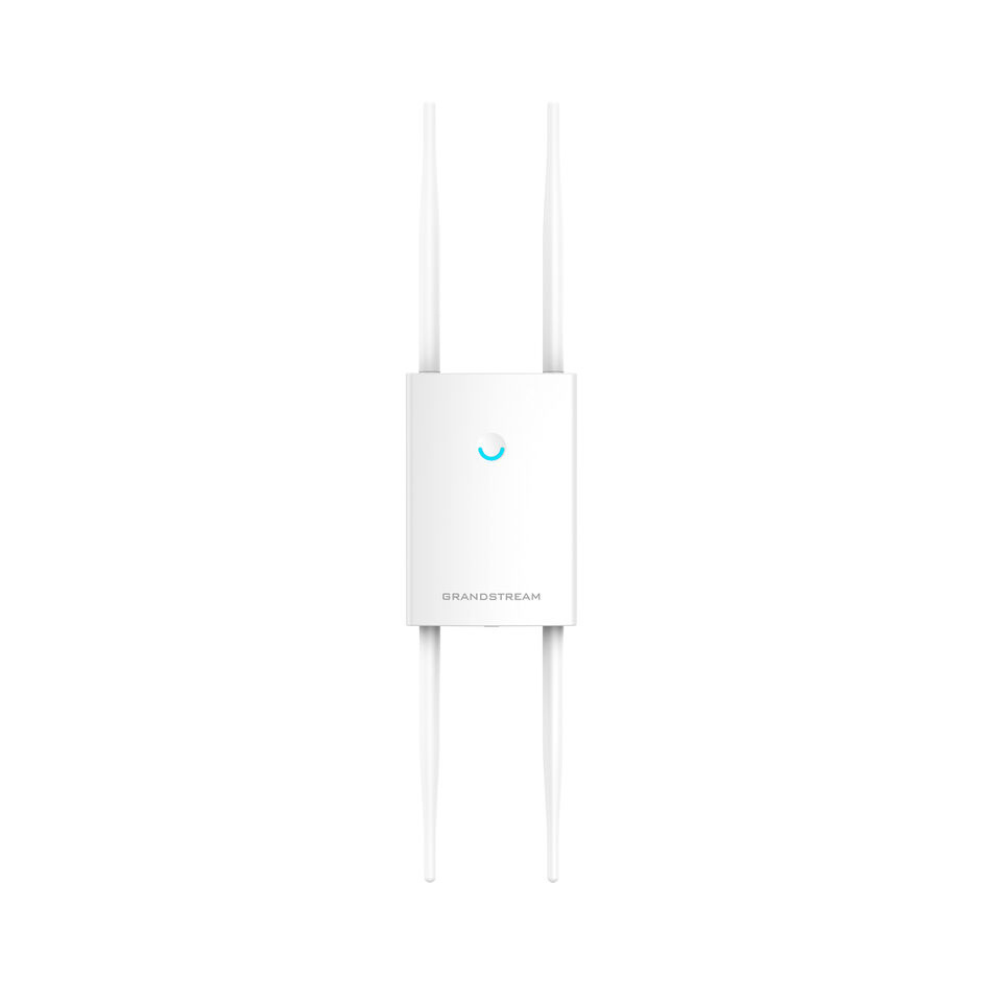

The Grandstream GWN7630LR Access Point is a long-range outdoor Wi-Fi access point designed for medium to large businesses and enterprise environments. It uses dual-band 4×4:4 MIMO technology, supports high-density wireless connectivity, and provides up to 300-meter coverage under suitable conditions. Its weatherproof construction, Gigabit Ethernet ports, PoE support, and centralized management capabilities make it suitable for both outdoor and extended indoor deployments.
| Product | Price in Kenya |
|---|---|
| Grandstream GWN7630LR Access Point | KSh 15,000 – KSh 20,000 |
| Specification | Details |
|---|---|
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac Wave-2 |
| Wireless Bands | 2.4GHz and 5GHz |
| 2.4GHz Throughput | Up to 600Mbps |
| 5GHz Throughput | Up to 1,733Mbps |
| Aggregate Wireless Throughput | Up to 2.33Gbps |
| MIMO | Dual-band 4×4:4 |
| Antennas | 4 detachable/changeable dual-band omnidirectional antennas |
| Concurrent Clients | 250+ |
| Ethernet | 2 × 10/100/1000Mbps |
| PoE | IEEE 802.3af/802.3at |
| Maximum Power Consumption | 16.5W |
| SSIDs | Up to 32 total, 16 per radio |
| Coverage | Up to 300m |
| Security | WPA, WPA2, WPA3, secure boot |
| Mounting | Wall or pole mount |
| Weather Protection | IP66-level when installed vertically |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Dimensions | 533.1 × 115 × 40mm |
| Weight | Approx. 564g |
4×4:4 MIMO provides higher wireless capacity than lower-stream access points.
Up to 2.33Gbps aggregate wireless throughput supports demanding wireless environments.
250+ concurrent client support makes it suitable for busy business networks.
Advanced QoS helps support low-latency voice and video applications.
Dual Gigabit Ethernet ports provide high-speed wired connectivity.
Long-range wireless coverage can extend up to 300m in suitable conditions.
Mesh networking and roaming features support larger wireless deployments.
Weather-resistant outdoor construction.
IP66-level weatherproof capability when vertically installed.
Four detachable and changeable dual-band antennas.
Wall and pole mounting support.
Heat-resistant design for outdoor deployments.
Operating temperature range from -30°C to 60°C.
Suitable for warehouses, campuses, hospitals, hotels, offices, and commercial compounds.
Dual 10/100/1000Mbps Gigabit Ethernet ports.
Supports IEEE 802.3af and 802.3at PoE.
Compatible with 802.11a/b/g/n/ac Wi-Fi devices.
Supports VLAN, QoS, 802.1Q, 802.1p, and 802.1x.
Supports mesh networking and roaming.
Built-in controller can manage up to 50 local GWN access points.
GWN.Cloud supports centralized cloud management.
Compatible with Grandstream Wi-Fi-enabled voice and video IP phones.
Outdoor business Wi-Fi.
Enterprise wireless networks.
Hotels and hospitality facilities.
Schools and educational campuses.
Hospitals and healthcare facilities.
Warehouses and industrial premises.
Large offices and commercial compounds.
Shopping centers and public facilities.
Voice-over-Wi-Fi deployments.
High-density wireless environments.
| Pros | Cons |
|---|---|
| Up to 300m coverage | Uses Wi-Fi 5 technology |
| 4×4:4 MIMO | No Wi-Fi 6 or Wi-Fi 7 |
| Up to 2.33Gbps wireless throughput | No 6GHz band |
| 250+ concurrent clients | Requires PoE or PoE+ infrastructure |
| Dual Gigabit Ethernet | Outdoor performance depends on installation |
| IP66-level weatherproofing | Larger physical design than basic indoor APs |
| Four changeable antennas | More installation planning may be required |
| Built-in AP controller | Advanced configurations require networking knowledge |
Is the Grandstream GWN7630LR suitable for outdoor use?
Yes. It is designed for outdoor long-range deployment and provides IP66-level weatherproof capability when installed vertically.
What is the maximum coverage of the GWN7630LR?
Grandstream specifies coverage of up to 300 meters under suitable conditions. Actual coverage varies depending on obstacles, interference, antenna positioning, and the deployment environment.
How many clients can connect to the GWN7630LR?
The current Grandstream specifications list support for 250+ concurrent Wi-Fi clients.
Does the GWN7630LR support PoE?
Yes. It supports IEEE 802.3af and 802.3at PoE.
Does the GWN7630LR have Gigabit Ethernet?
Yes. It has two autosensing 10/100/1000Mbps Ethernet ports.
Is the GWN7630LR a Wi-Fi 6 access point?
No. It uses IEEE 802.11ac Wave-2, commonly known as Wi-Fi 5.
Can the GWN7630LR manage other access points?
Yes. Its embedded controller can manage up to 50 local GWN access points, while GWN.Cloud provides cloud-based management.
Does the GWN7630LR support WPA3?
Yes. Grandstream lists WPA3 alongside WPA and WPA2 security options.
The Grandstream GWN7630LR Access Point is designed for organizations that require long-range, high-capacity wireless connectivity. Its 4×4:4 MIMO technology, up to 2.33Gbps wireless throughput, 250+ client capacity, 300-meter coverage, Gigabit Ethernet, PoE support, weatherproof construction, and centralized management make it suitable for large outdoor and enterprise wireless deployments.
