Description

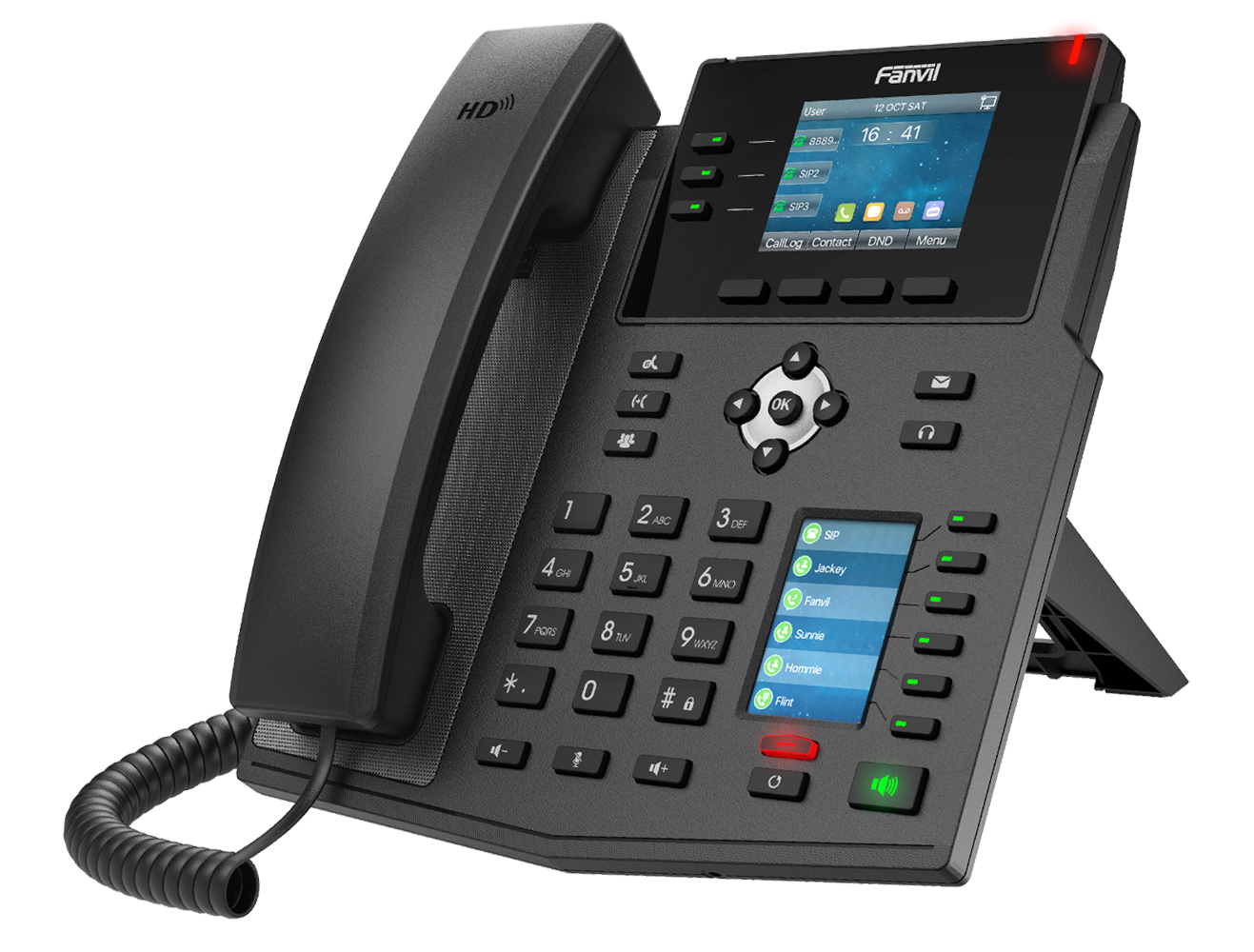

Overview of Fanvil X4U IP Phone

The Fanvil X4U IP Phone is an enterprise-grade SIP phone designed for offices, call centers, reception desks, and professional communication environments. It features a 2.8-inch main color display together with a 2.4-inch side display dedicated to DSS keys, providing convenient access to contacts and frequently used functions. The phone supports up to 12 SIP lines, HD audio using G.722 and Opus codecs, 6-way audio conferencing, dual Gigabit Ethernet ports, and integrated PoE. It also supports EHS wireless headsets, optional Bluetooth and Wi-Fi dongles, programmable DSS keys, and advanced network and SIP functions.

Fanvil X4U IP Phone Price in Kenya

Specifications of Fanvil X4U IP Phone

Specifications are based primarily on Fanvil's current X4U documentation.

Performance Features of Fanvil X4U IP Phone

• HD Business Audio: The X4U delivers clear business communication through HD audio support on the handset and speakerphone, with wideband G.722 and Opus codecs helping provide improved voice quality during VoIP calls.

• 12 SIP Lines: Support for up to 12 SIP lines allows the phone to handle multiple accounts and business communication requirements from a single desktop device.

• 6-Way Audio Conferencing: Built-in 6-way audio conferencing allows multiple participants to join a conversation without requiring a separate conferencing device.

• Gigabit Network Performance: Dual Gigabit Ethernet ports provide high-speed network connectivity while allowing the phone to be integrated into modern business networks without becoming a network bottleneck.

• Integrated PoE: Power over Ethernet simplifies installation by allowing compatible network infrastructure to provide both network connectivity and power through a single Ethernet connection.

Display and Call Management Features of Fanvil X4U IP Phone

• Dual Color Displays: The 2.8-inch main color screen provides the primary phone interface, while the 2.4-inch extended display provides dedicated visibility for DSS functions and programmable keys.

• Programmable DSS Keys: Up to 30 DSS keys can be configured across multiple pages, giving receptionists, executives, and call-center users quick access to extensions, contacts, BLF functions, and other frequently used operations.

• Dedicated Line Controls: Three line keys with LED indicators make it easier to monitor and manage multiple active SIP accounts.

• Large Phonebook Capacity: The local phonebook supports up to 1,000 entries, while XML and LDAP remote phonebooks provide additional options for centrally managed business contacts.

• Comprehensive Call Handling: The X4U supports functions such as call hold, transfer, forwarding, speed dial, call parking, redial, DND, intercom, anonymous calling, and auto-answer.

Connectivity and Business Integration Features of Fanvil X4U IP Phone

• Flexible Headset Connectivity: The phone supports EHS wireless headsets and optional Bluetooth connectivity through a BT dongle, making it suitable for users who need hands-free communication.

• Optional Wi-Fi Connectivity: A Wi-Fi dongle can be used to provide wireless network connectivity where a conventional Ethernet connection is not preferred.

• Advanced Network Support: IPv4/IPv6, VLAN, LLDP, QoS, 802.1X, L2TP, and OpenVPN support allow the phone to integrate into more structured and security-conscious business networks.

• Remote Provisioning: Support for FTP, TFTP, HTTP/HTTPS, DHCP options, SIP PnP, and TR-069 assists administrators with deploying and managing multiple phones across an organization.

• USB Functionality: The USB interface provides additional functionality for supported accessories and features, expanding the phone beyond basic SIP calling.

Applications of Fanvil X4U IP Phone

• Corporate offices and executive offices

• Reception and front-desk communication

• Call centers and customer-service departments

• Hotels and hospitality businesses

• IP PBX and VoIP deployments

• Small and medium-sized businesses

• Enterprise communication systems

• Organizations requiring multiple SIP accounts

• Businesses using wireless or EHS headsets

Pros and Cons of Fanvil X4U IP Phone

FAQs About Fanvil X4U IP Phone

How many SIP lines does the Fanvil X4U support?

The Fanvil X4U supports up to 12 SIP lines, making it suitable for users managing multiple VoIP accounts or extensions.

Does Fanvil X4U support PoE?

Yes. The X4U has integrated Power over Ethernet (PoE) and dual Gigabit Ethernet ports.

How many displays does the Fanvil X4U have?

It has a 2.8-inch 320 × 240 main color display and a 2.4-inch 320 × 240 side color display for DSS keys.

Does Fanvil X4U support Wi-Fi?

Yes, Wi-Fi connectivity is supported using an optional Wi-Fi dongle.

Does Fanvil X4U support Bluetooth?

Bluetooth headset connectivity is available through the optional Fanvil BT20 Bluetooth dongle.

Is Fanvil X4U suitable for a call center?

Yes. Its 12 SIP lines, programmable DSS keys, HD audio, headset support, call-management functions, and conferencing capabilities make it suitable for call centers and other high-volume business communication environments.

Conclusion

The Fanvil X4U IP Phone is a feature-rich enterprise SIP phone for businesses that need multiple SIP lines, programmable DSS controls, clear HD audio, dual color displays, Gigabit networking, and PoE. Its combination of advanced call management and flexible headset and network connectivity makes it a strong option for offices, reception areas, call centers, and enterprise VoIP deployments.
