Description

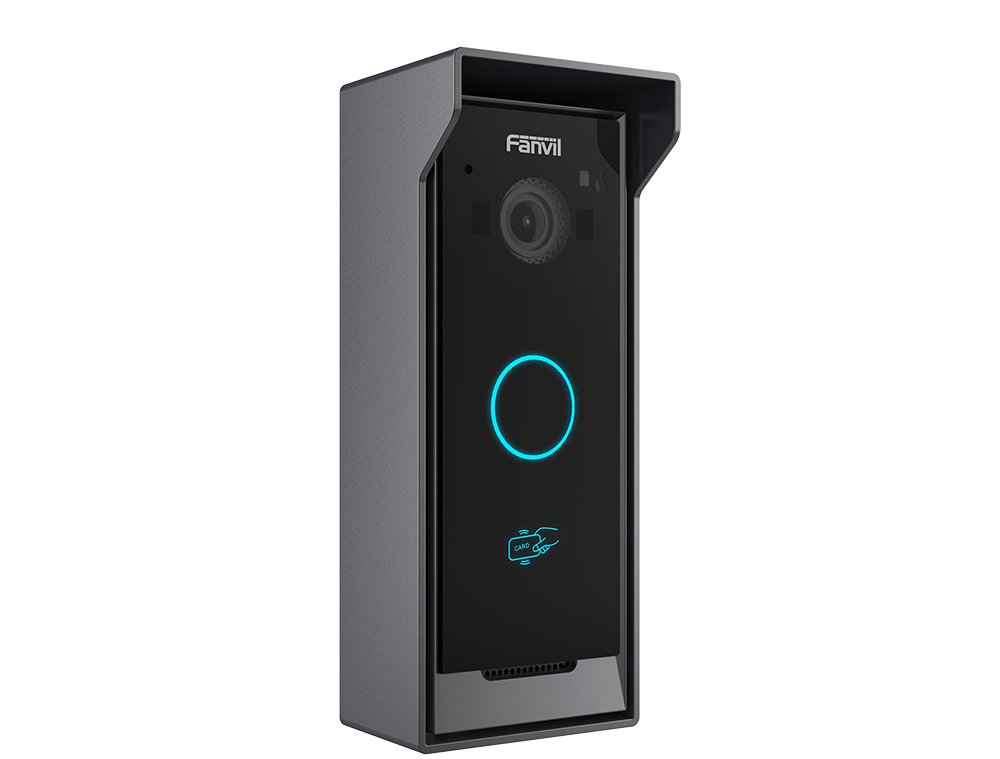

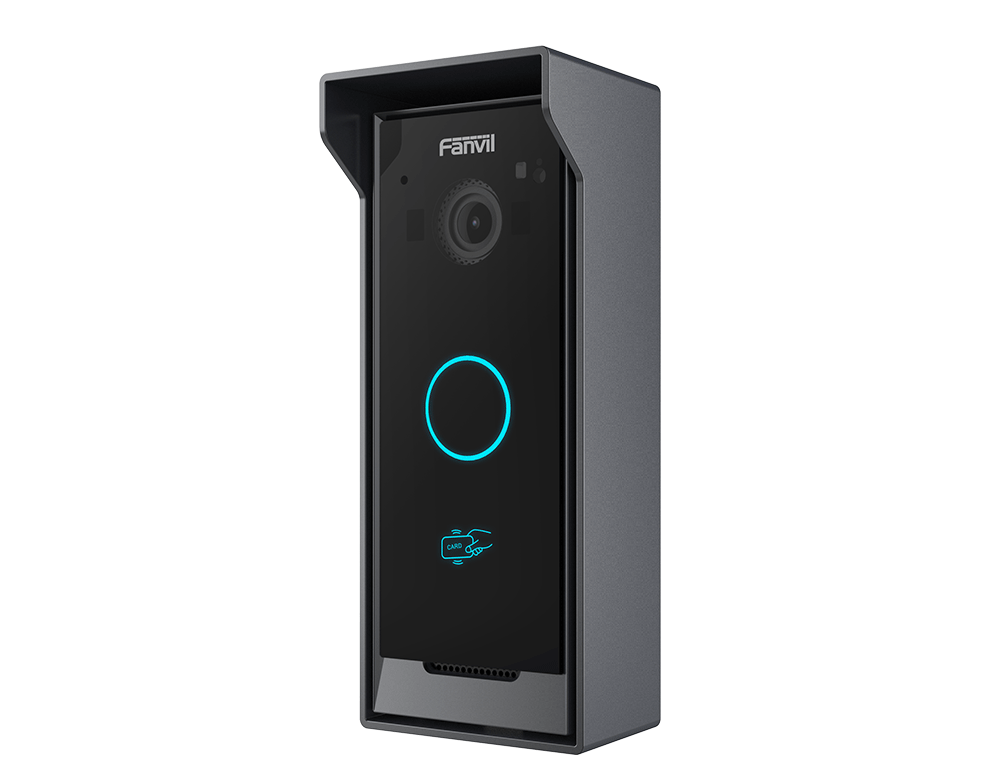

Overview of Fanvil i60 Video Door Phone

The Fanvil i60 Video Door Phone is a compact SIP video door phone designed for secure communication and access control at residential and commercial entrances. It combines a 2MP HDR camera with infrared night vision, full-duplex audio, one-touch speed dialing and multiple door-unlocking methods including Bluetooth, IC cards, DTMF, mobile applications and an indoor switch. Its IP65-rated housing, wide viewing angle, PoE connectivity and ONVIF Profile S support make it suitable for villas, apartments, gated communities, offices and other controlled-access premises.

Fanvil i60 Video Door Phone Price in Kenya

Specifications of Fanvil i60 Video Door Phone

Fanvil i60 Video Door Phone Performance Features

• High-Definition Video Monitoring: The 2MP HDR camera provides detailed visitor images, while infrared night vision maintains visibility in low-light and nighttime conditions. The 140° field of view also provides broad coverage around the entrance, helping reduce blind spots when identifying visitors.

• Wide-Angle Visitor Coverage: With a 100° horizontal and 57° vertical viewing angle, the Fanvil i60 can capture a broad area around the doorway rather than focusing only on a narrow central position. This is useful for gates, apartment entrances and office access points.

• Clear Two-Way Communication: Full-duplex hands-free audio and the built-in 1W speaker allow visitors and occupants to communicate without requiring a separate handset at the entrance.

• Reliable Video Integration: H.264 video encoding and ONVIF Profile S support allow the door phone to work with compatible video surveillance and IP communication environments.

Fanvil i60 Video Door Phone Access Control Features

• Multiple Unlocking Methods: Users can release the door through Bluetooth BLE, an IC card, mobile application, DTMF commands or an indoor switch, providing several access options for different users and situations.

• High-Capacity IC Card Access: The integrated 13.56MHz IC card reader supports storage for up to 10,000 cards, making the i60 suitable for residential developments, offices and multi-user buildings requiring controlled entry.

• One-Touch Visitor Calling: A dedicated speed-dial button provides a straightforward way for visitors to initiate communication with the designated indoor station or SIP endpoint.

• SIP-Based Communication: SIP 2.0 support enables the i60 to integrate with compatible IP phone and intercom systems, allowing entrance calls to be managed through an existing VoIP infrastructure.

Fanvil i60 Video Door Phone Design and Outdoor Durability Features

• IP65 Protection: The weather-resistant enclosure is designed to protect the door phone against dust and water exposure, making it suitable for outdoor entrance installations.

• Wide Operating Temperature: The i60 is specified for operation from -40°C to +70°C, providing a broad environmental operating range for outdoor deployments.

• Compact Construction: Measuring approximately 50 × 130 × 30mm, the unit occupies minimal wall space while providing camera, audio and access-control functionality in a single device.

• PoE Connectivity: IEEE 802.3af PoE allows compatible network infrastructure to provide both network connectivity and power through Ethernet, simplifying installation at suitable entrance points.

Applications of Fanvil i60 Video Door Phone

• Residential villas and homes

• Gated communities and residential estates

• Apartment buildings

• Office entrances

• Commercial buildings

• Business premises

• Property management facilities

• Controlled-access gates

• Multi-tenant buildings

• SIP-based access control systems

Pros and Cons of Fanvil i60 Video Door Phone

FAQs About Fanvil i60 Video Door Phone

Does the Fanvil i60 have a camera?

Yes. The Fanvil i60 features a 2MP HDR camera with infrared night vision for visitor identification in both daytime and low-light conditions.

How many IC cards can the Fanvil i60 store?

The Fanvil i60 supports up to 10,000 IC cards and uses a 13.56MHz IC card reader.

Does Fanvil i60 support PoE?

Yes. The i60 supports IEEE 802.3af PoE, as well as DC 12V/1A power.

Can the Fanvil i60 be used outdoors?

Yes. Its IP65-rated enclosure and wide operating temperature range make it suitable for outdoor entrance installations.

What are the unlocking options on Fanvil i60?

The i60 supports Bluetooth BLE, IC card, mobile app, DTMF and indoor-switch unlocking.

Does Fanvil i60 support ONVIF?

Yes. The i60 supports ONVIF Profile S, allowing integration with compatible IP video surveillance systems.

Does Fanvil i60 support SIP?

Yes. The Fanvil i60 supports SIP 2.0, allowing it to integrate with compatible SIP-based IP communication and intercom systems.

Conclusion

The Fanvil i60 Video Door Phone provides a compact combination of video communication and access control for homes, apartments, offices and gated properties. Its 2MP HDR camera, infrared night vision, wide viewing angle, multiple unlocking methods, 10,000-card capacity, SIP and ONVIF support, PoE connectivity and IP65 protection make it a versatile choice for modern entrance security systems.
