Stock Status:
Condition: New
SKU : 8413M43
7-inch IPS Color Capacitive Touchscreen
Display Resolution – 1024 × 600 Pixels
Operating System – Android 9.0
Wi-Fi – Dual-Band 2.4GHz & 5GHz
Ethernet – 10/100 Mbps RJ45
PoE – IEEE 802.3af
Speaker – 2W Multimedia
Alarm Inputs – 8
Short-Circuit Output – 1
Doorbell Input – 1
RS-485 – 1 Reserved Interface
SIP – UDP/TCP/TLS

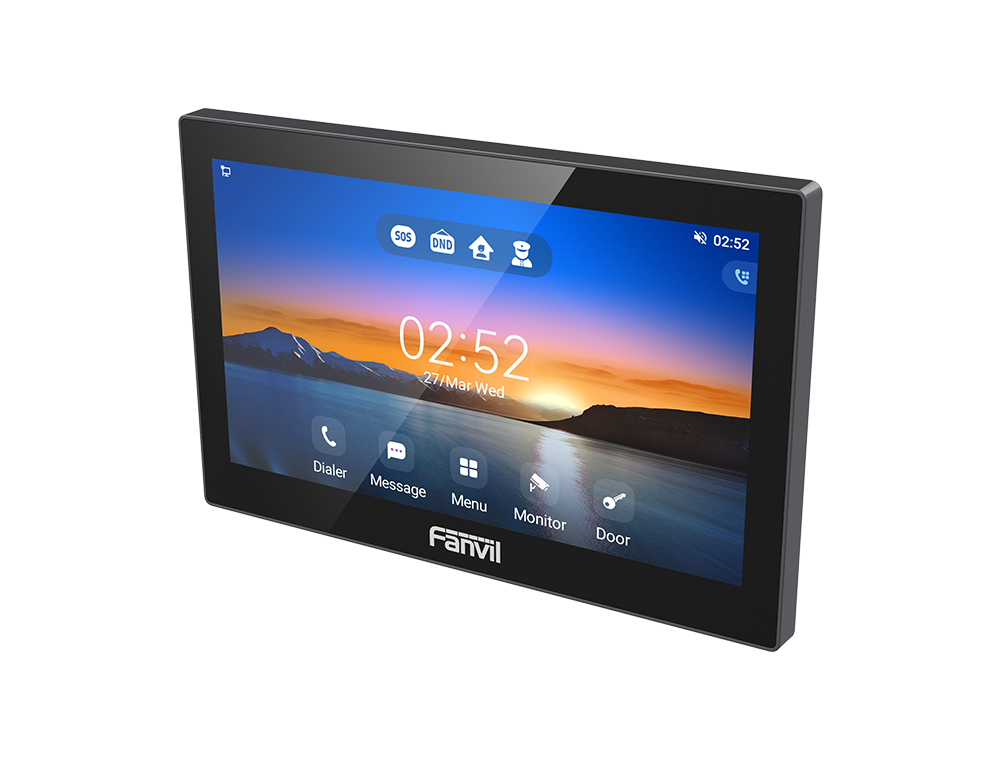

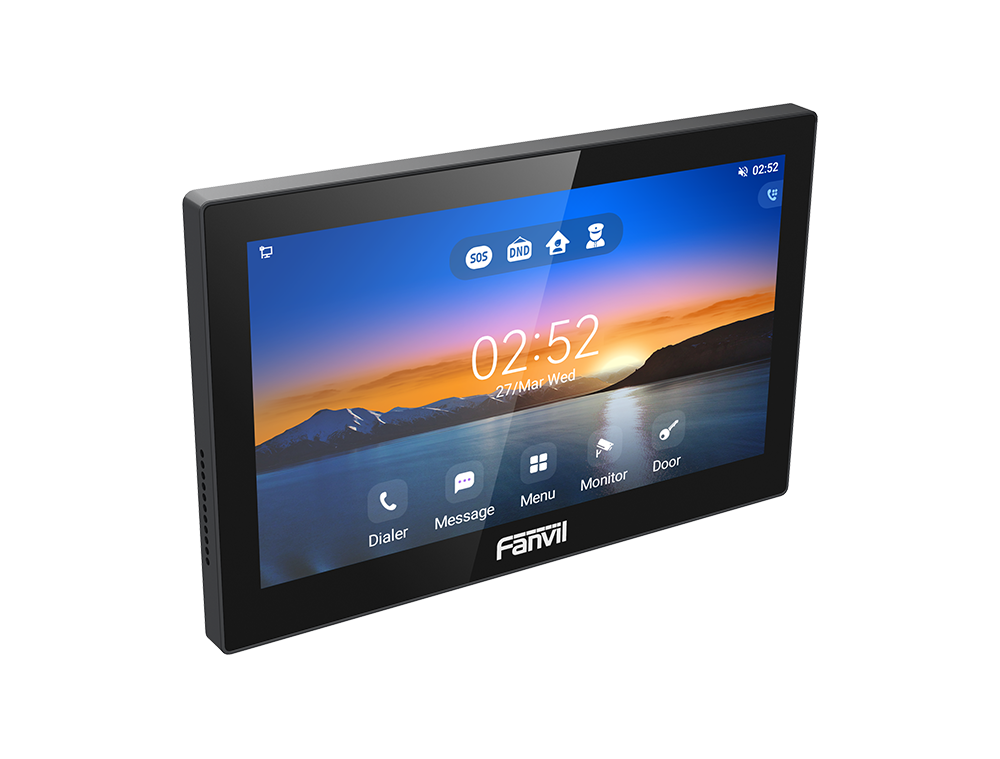

The Fanvil i505W Android Indoor Station is a 7-inch touchscreen indoor intercom designed for residential communities, villas, hotels and offices. It runs Android 9.0 and supports third-party application integration, while its dual-band Wi-Fi, PoE connectivity, video intercom, remote door unlocking and alarm interfaces make it suitable for modern access-control and security systems.
| Product | Price Range in Kenya |
|---|---|
| Fanvil i505W Android Indoor Station | KSh 13,000 – 16,000 |
| Specification | Details |
|---|---|
| Product Type | Android Indoor Station |
| Model | i505W |
| Display | 7-inch IPS Color Capacitive Touchscreen |
| Resolution | 1024 × 600 Pixels |
| Operating System | Android 9.0 |
| Wi-Fi | Dual-Band 2.4GHz & 5GHz |
| Ethernet | 1 × RJ45 10/100 Mbps |
| PoE | IEEE 802.3af |
| Speaker | 2W Multimedia Speaker |
| Audio | G.711a/u, G.729AB, iLBC, G.722, Opus |
| Audio Features | Full-Duplex Hands-Free, AEC |
| Video Codecs | H.264, H.265 Optional |
| Video Resolution | QVGA, CIF, VGA, 4CIF, 720p, 1080p |
| Alarm Inputs | 8 |
| Short-Circuit Output | 1 |
| Doorbell Input | 1 |
| RS-485 | 1 Reserved |
| SIP Protocol | SIP 2.0 over UDP/TCP/TLS |
| DTMF | RFC2833, SIP INFO, In-band |
| Installation | Wall Mounting |
| Power | 12V DC 1A / PoE |
| Operating Temperature | -10°C to +50°C |
| Humidity | 10%–90% RH |
| Dimensions | 177.38 × 113.99 × 22.5 mm |
| Gross Weight | 0.45 kg |
| Casing | ABS |
Specifications are based on Fanvil's April 2026 i505/i505W documentation.
7-Inch Touchscreen Interface: The 7-inch IPS capacitive touchscreen provides a clear and intuitive interface for managing indoor intercom calls, viewing visitors and accessing connected security functions. Its 1024 × 600 resolution provides sufficient detail for video intercom and monitoring applications.
Two-Way HD Communication: The built-in 2W speaker and full-duplex hands-free communication with Acoustic Echo Cancellation help provide clear conversations between occupants and visitors without requiring a conventional handset.
Video Monitoring: The i505W can display live video feeds from connected door phones and linked IP cameras, allowing users to monitor visitors and connected security areas directly from the indoor station.
Android Application Support: Android 9.0 allows the indoor station to integrate with compatible third-party applications and supports customization and secondary-development requirements for different building-management environments.
Dual-Band Wireless Connectivity: Built-in 2.4GHz and 5GHz Wi-Fi provides flexible network connectivity where running a dedicated Ethernet cable may be inconvenient.
PoE Installation: IEEE 802.3af PoE allows the i505W to receive network connectivity and power through compatible Ethernet infrastructure, helping simplify installation.
Multiple Alarm Interfaces: Eight alarm inputs provide connection options for sensors and security devices, while the short-circuit output and doorbell input support broader access-control integration.
Remote Door Unlocking: The indoor station supports remote door unlocking, allowing occupants to control connected entry systems from the touchscreen interface.
SIP-Based Intercom: SIP 2.0 support over UDP, TCP and TLS allows the device to operate within compatible SIP-based intercom and communication systems.
Wall-Mounted Design: Its compact wall-mounted form factor makes it suitable for apartments, villas, hotels and office environments where a permanent indoor access terminal is required.
Security System Integration: The combination of alarm inputs, doorbell input, short-circuit output and reserved RS-485 interface provides expansion options for different security and building-control installations.
Flexible Power Options: The i505W supports both 12V DC external power and IEEE 802.3af PoE, giving installers flexibility depending on the available network infrastructure.
Broad Video Codec Support: H.264 and optional H.265 decoding, with support for video resolutions up to 1080p, enables compatibility with a range of connected video intercom and surveillance devices.
Residential apartments and gated communities
Villas and private homes
Hotels and hospitality properties
Office buildings
Reception and visitor-management areas
Video intercom systems
Access-control installations
Smart building security systems
| Pros | Cons |
|---|---|
| 7-inch color touchscreen | Runs Android 9.0 rather than a newer Android version |
| Dual-band Wi-Fi | 10/100 Mbps Ethernet rather than Gigabit Ethernet |
| IEEE 802.3af PoE support | Designed primarily for fixed wall installation |
| 8 alarm inputs | Advanced functions depend on compatible system integration |
| Remote door unlocking | Optional H.265 support |
| Android third-party app integration | — |
| Supports IP camera live feeds | — |
The Fanvil i505W is an Android-based indoor video intercom and access-control station used in apartments, villas, hotels, offices and other buildings.
Yes. The i505W supports dual-band 2.4GHz and 5GHz Wi-Fi.
Yes. It supports IEEE 802.3af Power over Ethernet as well as 12V DC external power.
Yes. Remote door unlocking is one of its supported functions when connected to a compatible access-control system.
It has a 7-inch IPS color capacitive touchscreen with a 1024 × 600 pixel resolution.
The i505W runs Android 9.0 and supports third-party application integration.
The Fanvil i505W Android Indoor Station is a versatile 7-inch touchscreen solution for video intercom, visitor monitoring and access control. With Android 9.0, dual-band Wi-Fi, PoE, remote door unlocking, IP camera monitoring and multiple alarm interfaces, it provides a flexible indoor security terminal for residential, hotel and office deployments.
