Stock Status:
Condition: New
SKU : 2167M87
7-inch IPS Color Capacitive Touchscreen
Resolution – 1024 × 600 Pixels
Wi-Fi – Dual-Band 2.4GHz & 5GHz
Ethernet – 10/100 Mbps
PoE – IEEE 802.3af
Speaker – 2W Multimedia
Alarm Inputs – 8
Short-Circuit Output – 1
Doorbell Input – 1
RS-485 – 1 Reserved
Video Decoding – H.264, H.265 Optional
Video Resolution – Up to 1080p

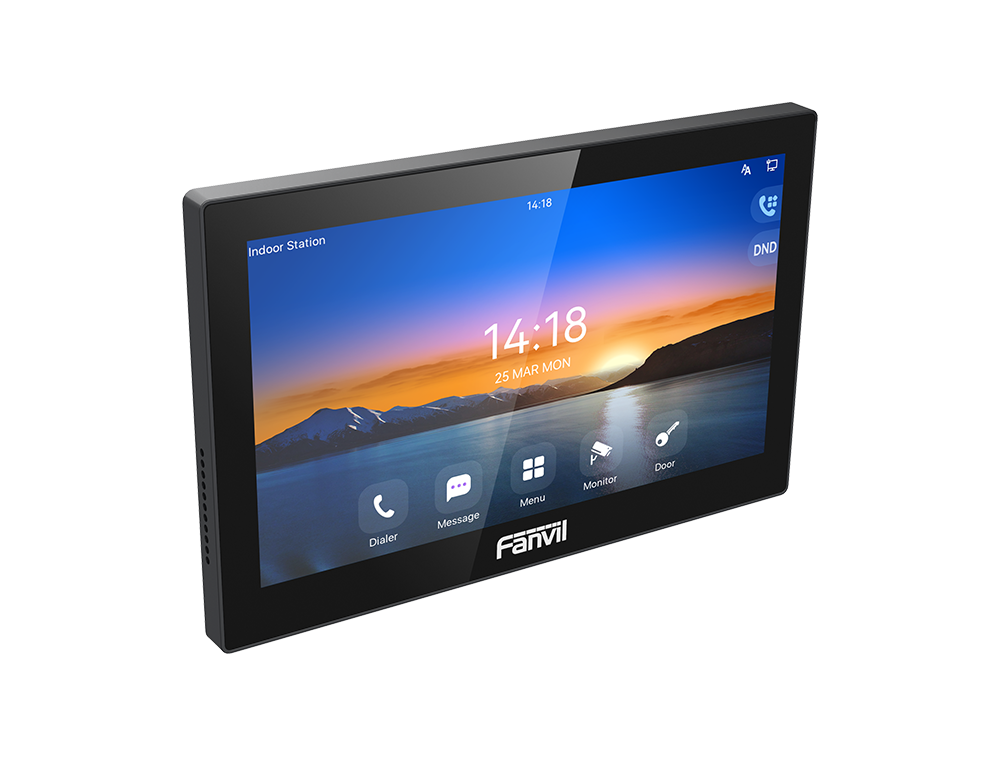

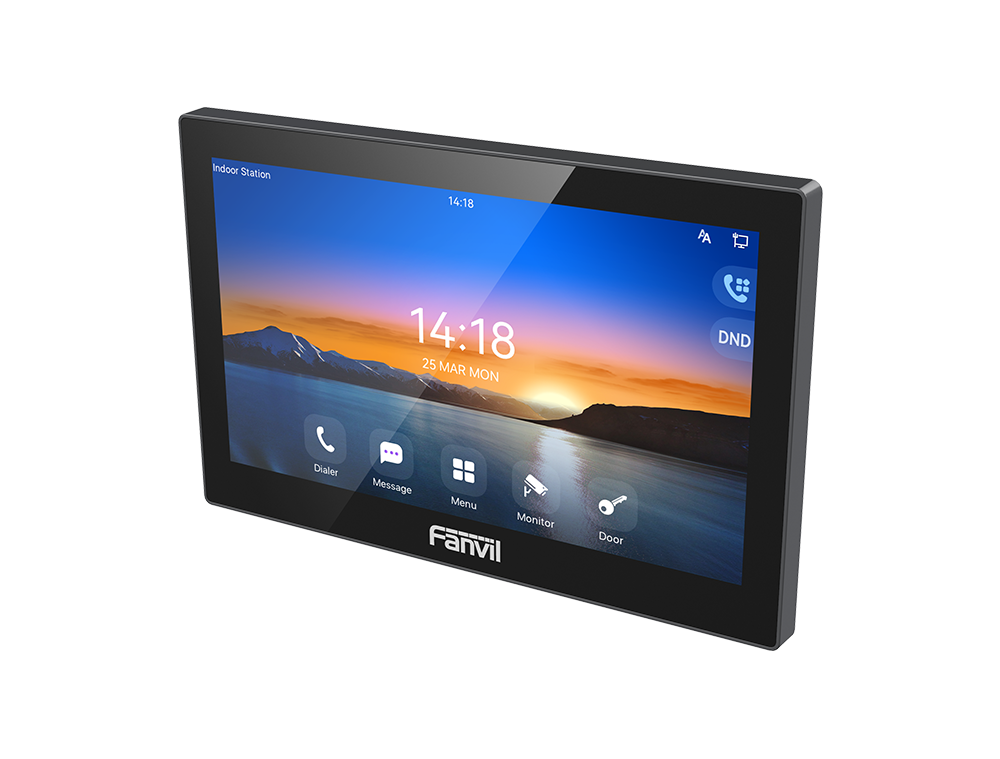

The Fanvil i504W SIP Indoor Station is a 7-inch touchscreen indoor communication and access-control device designed for residential communities, villas, hotels and offices. It supports SIP-based two-way communication, video monitoring, remote door unlocking and security sensor integration, with dual-band Wi-Fi and PoE providing flexible network connectivity.
| Product | Price Range in Kenya |
|---|---|
| Fanvil i504W SIP Indoor Station | KSh 9,000 – 11,500 |
| Specification | Details |
|---|---|
| Product Type | SIP Indoor Station |
| Model | i504W |
| Applications | Hotels, Villas, Residential Communities |
| Display | 7-inch IPS Color Capacitive Touchscreen |
| Resolution | 1024 × 600 Pixels |
| Casing Material | ABS |
| Speaker | 2W Multimedia Speaker |
| Wi-Fi | Dual-Band 2.4GHz & 5GHz |
| Ethernet | 1 × RJ45 10/100 Mbps |
| PoE | IEEE 802.3af |
| Power Supply | 12V DC, 1A / PoE |
| SIP Protocol | SIP 2.0 over UDP/TCP/TLS |
| Audio Codecs | G.711A/U, G.723.1, G.726, G.729AB, iLBC, G.722, Opus |
| Audio | Full-Duplex Hands-Free, AEC |
| Video Codecs | H.264, H.265 Optional |
| Video Resolution | QVGA, CIF, VGA, 4CIF, 720p, 1080p |
| Alarm Inputs | 8 |
| Short-Circuit Output | 1 |
| Doorbell Input | 1 |
| RS-485 | 1 Reserved |
| DTMF | In-band, RFC2833, SIP INFO |
| DND | Supported with User-Defined Schedule |
| IP Camera Monitoring | Supported |
| Remote Door Unlocking | Supported |
| Incoming Call Ringtones | Customizable |
| Message Function | Send and Receive Messages |
| Installation | Wall Mounting |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Operating Humidity | 10%–90% RH |
| Dimensions | 177.38 × 113.99 × 22.5 mm |
| Gross Weight | 0.45 kg |
7-Inch Touchscreen: The large 7-inch IPS capacitive touchscreen provides an intuitive interface for managing intercom calls, viewing visitors, monitoring connected cameras and accessing door-control functions. The 1024 × 600 resolution delivers clear visual information for everyday indoor access-control use.
Full-Duplex Hands-Free Communication: The 2W multimedia speaker and Acoustic Echo Cancellation support clear two-way hands-free conversations between occupants and visitors without requiring a traditional handset.
Video Monitoring: The i504W supports hardware video decoding and can display feeds from compatible door phones and third-party IP cameras, making it possible to monitor visitors and connected surveillance points from the indoor station.
Remote Door Access: When integrated with a compatible door station and access-control system, users can remotely unlock the entrance directly from the indoor station.
Dual-Band Wi-Fi: Built-in 2.4GHz and 5GHz Wi-Fi provides flexible wireless network connectivity for installations where a wired network connection may not be convenient.
PoE Connectivity: IEEE 802.3af Power over Ethernet enables compatible network infrastructure to provide both power and network connectivity through Ethernet, simplifying installation.
Multiple Alarm Inputs: Eight alarm inputs provide extensive connectivity for security sensors and other monitoring devices, while the doorbell input and short-circuit output expand its access-control capabilities.
SIP Communication: SIP 2.0 support over UDP, TCP and TLS allows the i504W to integrate with compatible SIP-based intercom and communication systems.
Wall-Mounted Installation: The slim 177.38 × 113.99 × 22.5 mm enclosure is designed for wall-mounted deployment, making the station suitable for fixed indoor locations.
Access-Control Integration: The combination of alarm inputs, doorbell input, short-circuit output and reserved RS-485 interface provides connectivity for broader building security and automation systems.
Flexible Power Options: The device supports either 12V DC power or IEEE 802.3af PoE, allowing installation according to the available electrical and network infrastructure.
Wide Video Compatibility: Support for H.264 and optional H.265 decoding, with resolutions up to 1080p, allows the indoor station to work with compatible video intercom and IP-camera systems.
Residential apartments and gated communities
Villas and private homes
Hotels and hospitality facilities
Office buildings
Video intercom systems
Visitor management
Door access-control systems
Building security installations
IP camera monitoring
| Pros | Cons |
|---|---|
| 7-inch color touchscreen | 10/100 Mbps Ethernet |
| Dual-band 2.4GHz and 5GHz Wi-Fi | Designed primarily for wall-mounted installation |
| IEEE 802.3af PoE support | H.265 support is optional |
| Eight alarm inputs | Advanced functions require compatible connected systems |
| Remote door unlocking | — |
| IP camera monitoring | — |
| Full-duplex hands-free communication | — |
| Multiple power options | — |
The Fanvil i504W is an indoor SIP video intercom and access-control station used in residential communities, villas, hotels and offices.
Yes. The i504W supports dual-band 2.4GHz and 5GHz Wi-Fi.
Yes. It supports IEEE 802.3af PoE as well as 12V DC, 1A external power.
Yes. The indoor station supports remote door unlocking when connected to a compatible access-control system.
It has a 7-inch IPS color capacitive touchscreen with a 1024 × 600 pixel resolution.
Yes. It supports viewing live video feeds from linked third-party IP cameras and compatible door phones.
The Fanvil i504W SIP Indoor Station combines a 7-inch touchscreen with SIP communication, dual-band Wi-Fi, PoE, video monitoring, remote door unlocking and multiple alarm interfaces. It is well suited for residential, hotel and office access-control installations requiring an integrated indoor communication and security terminal.
