Description

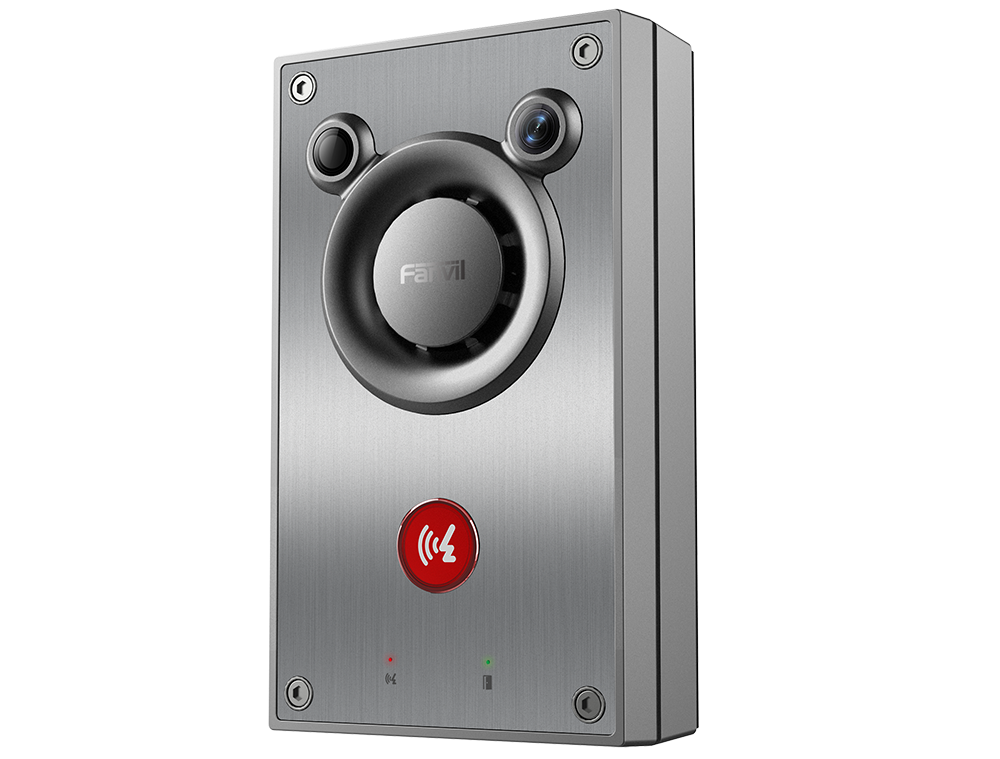

The Fanvil A12V Video Intercom is a rugged SIP video intercom designed for secure communication and access control in demanding indoor and outdoor environments. It combines a 4MP starlight HDR camera with infrared illumination for clear video, a powerful 10W speaker and dual-microphone noise reduction for clear two-way communication. The A12V supports SIP 2.0, PoE+, Wiegand, RS-485, two relay outputs, two short-circuit inputs, MicroSD storage and flexible wall or flush mounting. Its stainless-steel and aluminum-alloy construction, IP66 protection and IK10 impact resistance make it suitable for commercial, industrial and high-security entrances.

Fanvil A12V Video Intercom Price in Kenya

Specifications of Fanvil A12V Video Intercom

Fanvil A12V Video Intercom Performance Features

• 4MP Starlight Video: The 4MP starlight camera provides high-resolution video with a wide viewing angle, while HDR imaging helps produce clearer images in scenes with varying levels of brightness. Infrared illumination also supports monitoring in low-light environments.

• Wide-Angle Coverage: The 122° diagonal, 103° horizontal and 54.8° vertical viewing angles provide broad coverage around the entrance, helping capture visitors and activity across a larger area.

• Powerful 10W Audio: The integrated 10W speaker provides strong audio output for entrance communication, with hands-free volume reaching up to 90dB and broadcast volume up to 100dB.

• Enhanced Voice Clarity: Dual microphones combined with noise-reduction and voice-enhancement technology help maintain clear conversations even in environments affected by surrounding noise.

Fanvil A12V Video Intercom Access Control Features

• Integrated Relay Control: Two short-circuit outputs with a built-in relay can be used to control compatible electric locks, alarms and other access-control equipment.

• Multiple Integration Interfaces: Wiegand, RS-485 and short-circuit input/output interfaces allow the A12V to connect with compatible access-control devices, switches, sensors and security equipment.

• SIP-Based Communication: SIP 2.0 support enables integration with compatible IP phones, indoor stations, intercom systems and VoIP infrastructure.

• PoE+ Installation: IEEE 802.3at PoE+ provides network connectivity and power through a compatible Ethernet connection, helping simplify installation at suitable locations.

Fanvil A12V Video Intercom Durability and Installation Features

• IP66 Protection: The A12V is designed with IP66 protection against dust and powerful water exposure, making it suitable for demanding outdoor entrance environments.

• IK10 Impact Protection: IK10 impact resistance provides a high level of mechanical protection for installations where the intercom may be exposed to accidental impacts or vandalism.

• Rugged Metal Construction: The stainless-steel decorative panel and aluminum-alloy housing provide a durable construction suitable for commercial, industrial and security-focused installations.

• Flexible Mounting: Wall-mounted and flush-mounted installation options allow the A12V to be installed according to the design and security requirements of the entrance.

Applications of Fanvil A12V Video Intercom

• Commercial building entrances

• Industrial facilities

• Warehouses

• Office buildings

• Business premises

• School and campus entrances

• Hospitals

• Parking facilities

• Gated properties

• High-security entrances

• Access-control systems

• SIP video intercom systems

Pros and Cons of Fanvil A12V Video Intercom

FAQs About Fanvil A12V Video Intercom

Does the Fanvil A12V have a camera?

Yes. The A12V features a 4MP starlight HD camera with HDR and infrared illumination, supporting video resolutions up to 1080p.

How powerful is the Fanvil A12V speaker?

The A12V has a 10W speaker, with hands-free call volume reaching up to 90dB and broadcast volume up to 100dB.

Does Fanvil A12V support PoE?

Yes. The A12V supports IEEE 802.3at PoE+ Class 4, as well as DC 12–24V/2A power.

Is the Fanvil A12V suitable for outdoor installation?

Yes. It features IP66 protection and IK10 impact protection, together with stainless-steel and aluminum-alloy construction and an operating temperature range of -40°C to +70°C.

Does the Fanvil A12V support access control?

Yes. The A12V has two short-circuit inputs, two short-circuit outputs with built-in relay, Wiegand and RS-485 interfaces, allowing integration with compatible access-control equipment.

Does Fanvil A12V support SIP?

Yes. The A12V supports SIP v1 and SIP v2 over UDP, TCP and TLS, allowing it to integrate with compatible IP communication systems.

Can the Fanvil A12V be flush mounted?

Yes. The A12V supports both wall-mounted and flush-mounted installation.

Conclusion

The Fanvil A12V Video Intercom is a rugged SIP-based video communication and access-control solution built for demanding environments. Its 4MP starlight HDR camera, infrared illumination, powerful 10W speaker, dual-microphone noise reduction, PoE+ connectivity, relay control, Wiegand and RS-485 interfaces, IP66 protection and IK10 impact resistance make it a strong choice for commercial, industrial, campus, parking and high-security entrance applications.
