Description

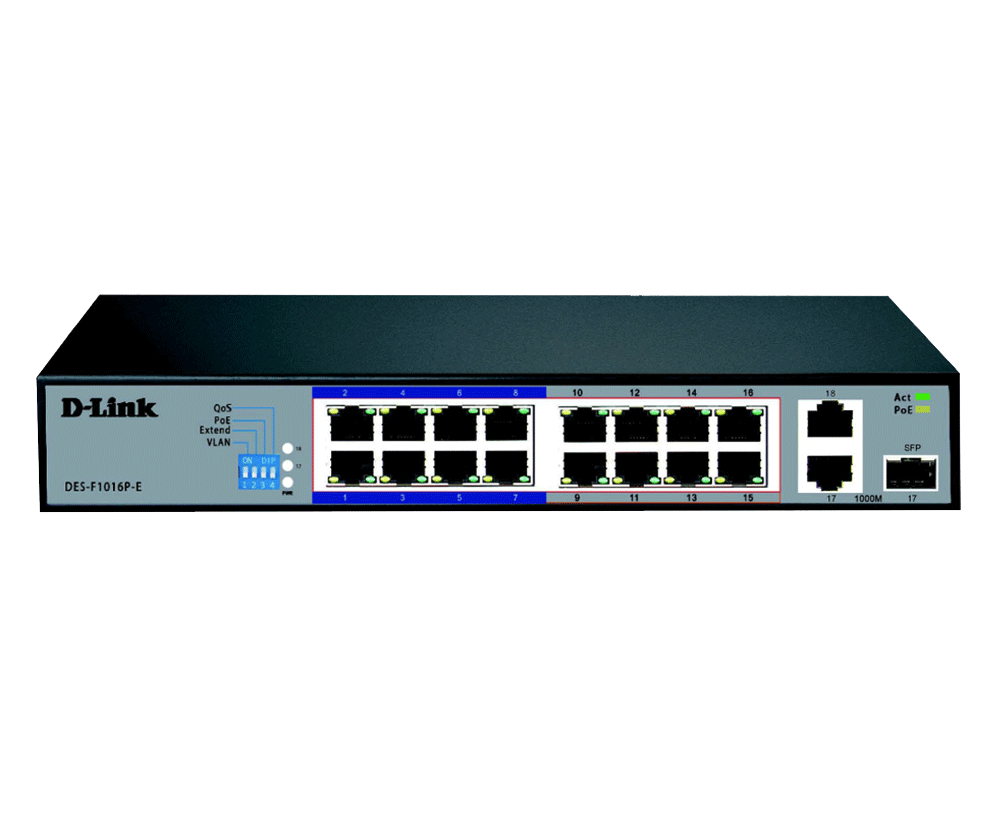

D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Introduction
The D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE is a reliable networking switch designed for CCTV surveillance systems, business networks, and other installations requiring multiple PoE connections. It provides 16 Fast Ethernet PoE ports for connecting and powering compatible devices over a single Ethernet cable.
The switch also supports long-range transmission of up to 250 metres, making it suitable for installations where IP cameras or other network devices are located far from the main networking equipment.
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Price in Kenya
| Product |
Price |
| D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE |
KSh 17,000 |
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Key Specifications
| Feature |
Details |
| Model |
DES-F1016P-E |
| Switch Type |
Unmanaged PoE+ Switch |
| Total PoE Ports |
16 |
| Port Speed |
10/100 Mbps |
| Uplink |
2 Gigabit ports with 1 Combo RJ45/SFP |
| PoE Standards |
IEEE 802.3af/at |
| Total PoE Budget |
150W |
| Maximum PoE Output |
Up to 30W per port |
| Maximum Transmission Distance |
Up to 250m |
| Switching Capacity |
7.2 Gbps |
| Forwarding Rate |
3.868 Mpps |
| Flow Control |
IEEE 802.3x |
| Auto MDI/MDIX |
Yes |
| Installation |
Plug and play |
| Cooling |
Fanless |
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Performance
The DES-F1016P-E provides dependable network connectivity and centralized power delivery for surveillance and networking equipment.
- 16 PoE ports allow multiple compatible devices to connect and receive power.
- IEEE 802.3af/at support provides compatibility with a wide range of PoE devices.
- Up to 150W of total PoE power is available for connected equipment.
- Extended mode enables transmission distances of up to 250 metres.
- 7.2 Gbps switching capacity supports efficient handling of network traffic.
- IEEE 802.3x flow control helps reduce packet loss during periods of heavy traffic.
- Gigabit uplinks provide faster connections to network infrastructure.
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Build Quality & Design
The switch features a practical design intended for reliable operation in surveillance and networking environments.
- Compact and durable construction.
- Fanless operation provides quiet performance.
- LED indicators make it easy to monitor power, network activity, and PoE status.
- Plug-and-play design simplifies installation.
- Auto MDI/MDIX eliminates the need for special crossover cables.
- Suitable for desktop and network equipment installations.
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Connectivity & Compatibility
The DES-F1016P-E is designed to connect a variety of Ethernet and PoE-enabled devices.
- Compatible with PoE IP cameras.
- Suitable for wireless access points.
- Supports compatible VoIP phones.
- 16 PoE ports provide simultaneous data and power connections.
- Two Gigabit uplink ports allow connection to routers, NVRs, servers, or other switches.
- Combo RJ45/SFP connectivity provides flexible network expansion.
- Compatible with IEEE 802.3af and IEEE 802.3at PoE devices.
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Ideal Use Cases
This switch is best suited for:
- CCTV surveillance systems
- IP camera installations
- Long-distance security camera networks
- Small and medium-sized business networks
- Wireless access point installations
- VoIP phone deployments
- Schools and institutions
- Offices and commercial buildings
- Warehouse and industrial surveillance systems
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Pros and Cons
| Pros |
Cons |
| 16 PoE ports |
Main ports are limited to 100 Mbps |
| Up to 250m transmission distance |
Unmanaged design offers limited configuration |
| 150W PoE budget |
Not intended for advanced Layer 3 networking |
| Supports IEEE 802.3af/at |
Extended mode prioritizes distance over normal Fast Ethernet performance |
| 2 Gigabit uplink ports |
|
| Combo RJ45/SFP uplink flexibility |
|
| Fanless and quiet operation |
|
| Plug-and-play installation |
|
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE FAQs
How many PoE ports does the D-Link DES-F1016P-E have?
- It has 16 × 10/100 Mbps PoE ports.
What is the maximum PoE transmission distance?
- The switch supports transmission distances of up to 250 metres when its long-range mode is enabled.
What is the PoE power budget?
- The DES-F1016P-E provides a total PoE power budget of up to 150W.
Can it be used for CCTV cameras?
- Yes. It is particularly suitable for IP surveillance cameras and long-distance CCTV installations.
Does the D-Link DES-F1016P-E support Gigabit connectivity?
- The 16 main PoE ports are Fast Ethernet 10/100 Mbps, while the switch also provides Gigabit uplink connectivity through its uplink ports.
Is it a managed switch?
- No. It is an unmanaged plug-and-play switch designed for simple installation without complicated network configuration.
D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE Conclusion
The D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE is a practical choice for surveillance networks and business installations requiring multiple PoE connections. With 16 PoE ports, a 150W power budget, Gigabit uplinks, and long-range transmission of up to 250 metres, it provides a flexible solution for connecting and powering network devices.
At KSh 17,000, the D-Link DES-F1016P-E is well suited for CCTV installations, offices, schools, commercial buildings, and other environments requiring reliable long-distance PoE connectivity.
